Torque Multiplier 6000NM/9500NM TW-429-01.02

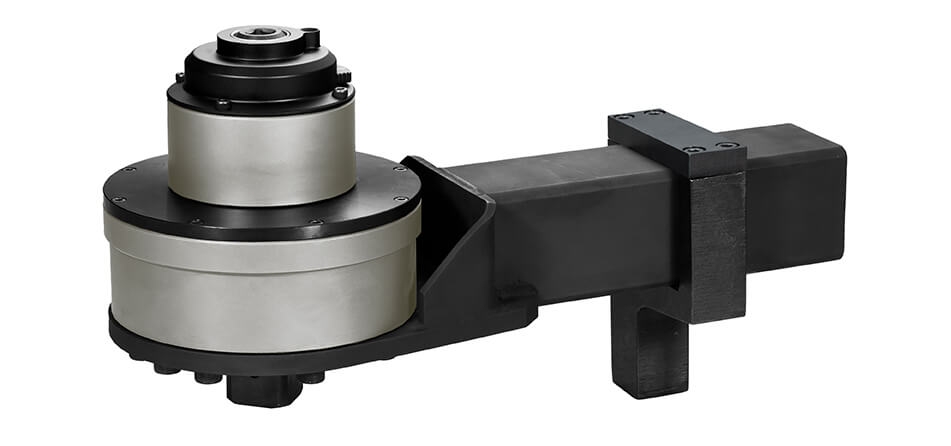

Product Name : Torque Multiplier 6000NM/9500NM

Triple-planetary-gear-carriers provide high load capacity.
With high-ratio gearbox (135:1), multiplication accuracy ±5%.
Heavy-duty application with durability.
High multiplication ratio reduces the need for long lever arms and heavy-duty wrenches.
Supplied with a standard reaction bar.
Robust construction ensures long service life.

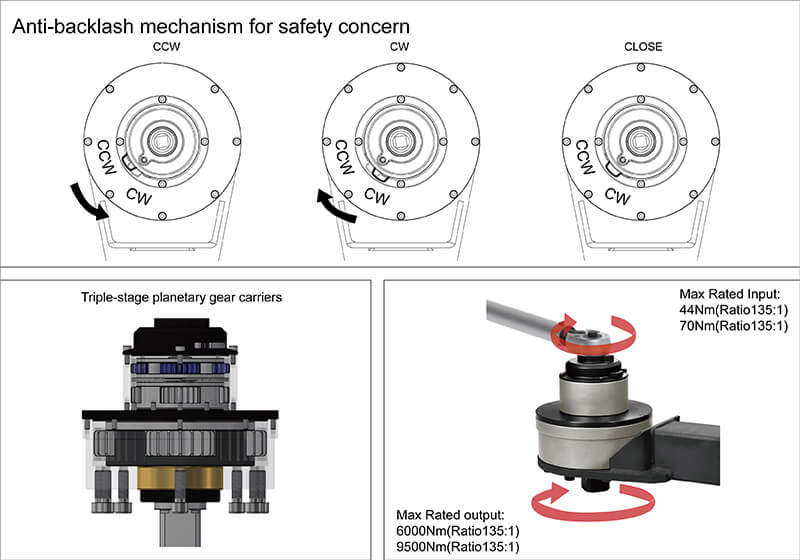

Anti-backlash mechanism enhances operator safety and comfort.

Q'ty :

Inquiry

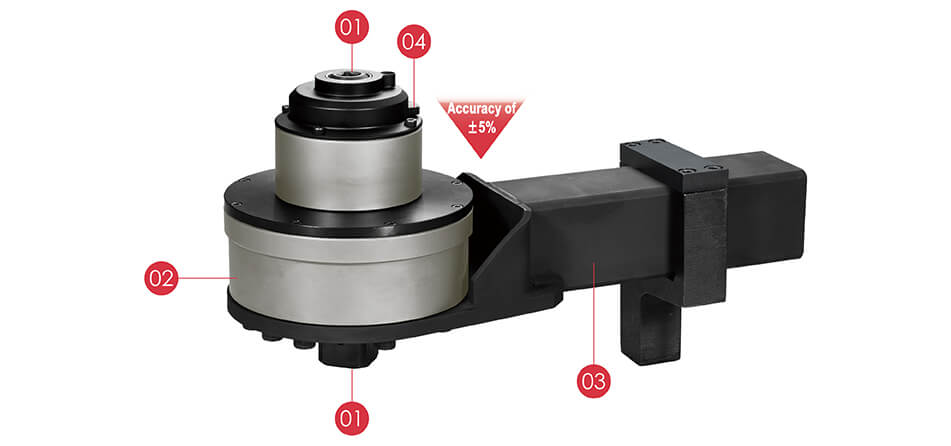

Input & Output end: Chromium-molybdenum alloy steel construction provides exceptional strength and durability.
Main body: Electroplating finished; good for anti-corrosion and anti abrasion.
Planetary gear mechanism, triple planetary-gear-carriers brings high load capacity with high ratio 135:1.
Reaction Arm: The movable reaction arm is suit for different working place.
Safety device: Anti-backlash mechanism for safety concern and comfortable operation.

Wind Energy & Renewable Power

Aerospace & Marine Industry

Heavy-Duty Vehicle & Agricultural Machinery

TT NO.	Nm	ft-lb	Ratio	Input Square	Output Square	g	case/CTN
TW-429-01	6000	4500	135:1	1/2"	1-1/2"	14400	1
TW-429-02	9500	7000	135:1	1/2"	1-1/2"	24800	1
