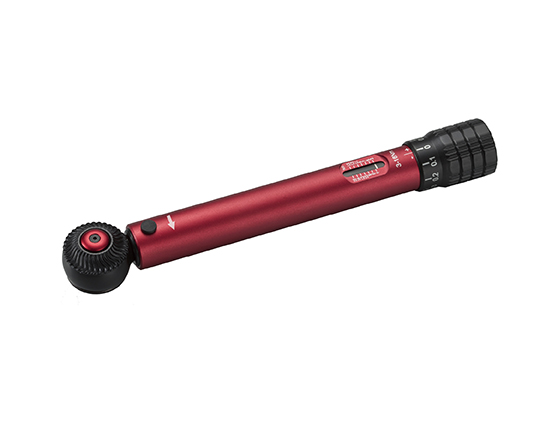

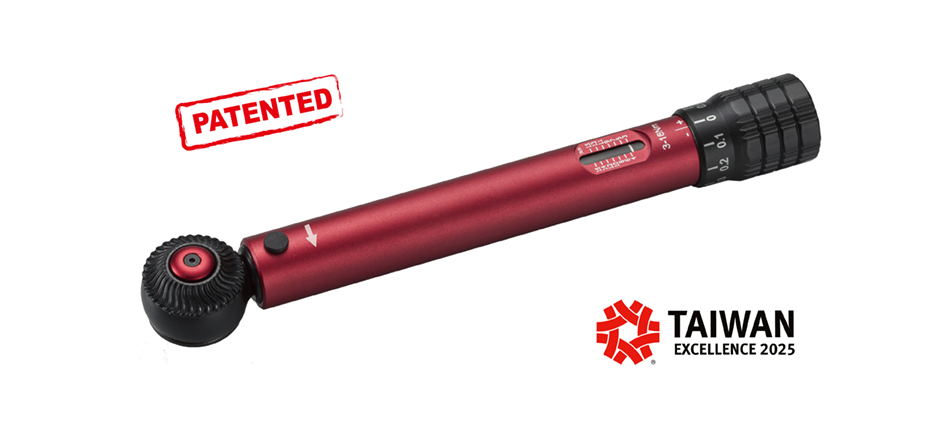

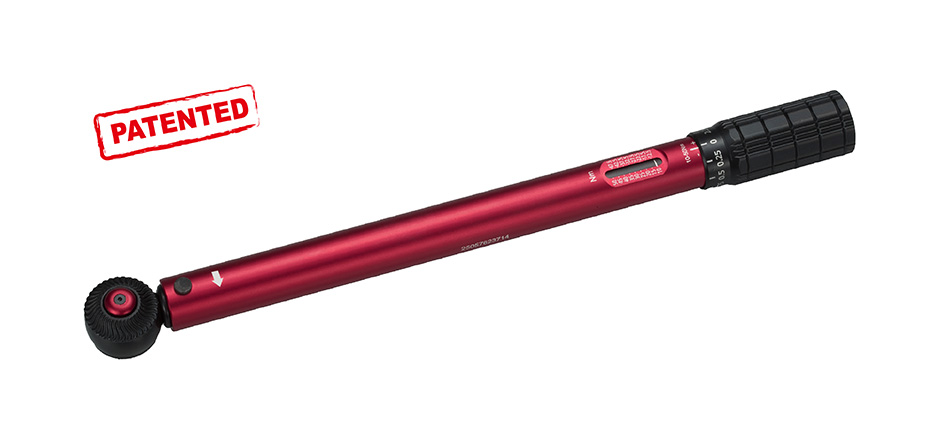

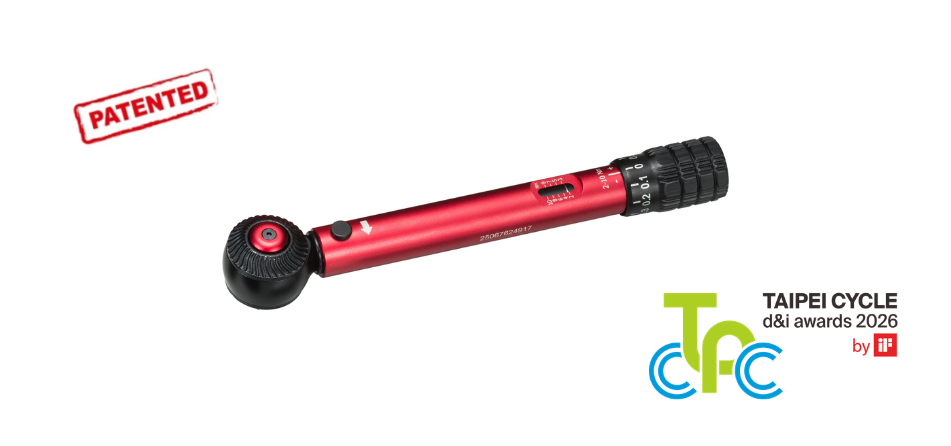

Product Name : Aluminum Mini Cycling Torque Wrench
Features
  • Industrial application. Ideal for the cycling and mountain bike industry.
  • Reversible torque wrench for bi-directional tightening.
  • 72 teeth ratchet head allows to use in narrow spaces.
  • Hex drive for the bit, square drive for the socket.
  • The quick release function is for square drive only.
  • Easily readable window scale.
  • Additional micrometer scale for setting interim value.
  • Non-slip handle design with automatic rebound function enables reliable locking of the torque setting.
  • Lightweight anodic aluminum body brings the exquisite look.
  • Tolerance of torque ±4%.
  • Quality meets DIN ISO 6789 & ASME B107.300-2010.
Product Introduction
Ensure precision and quality in your industrial projects, specifically in the cycling and mountain bike industry, with our mini torque wrench meeting DIN ISO 6789 & ASME B107.300-2010 standards and offering a tolerance of ±4%.

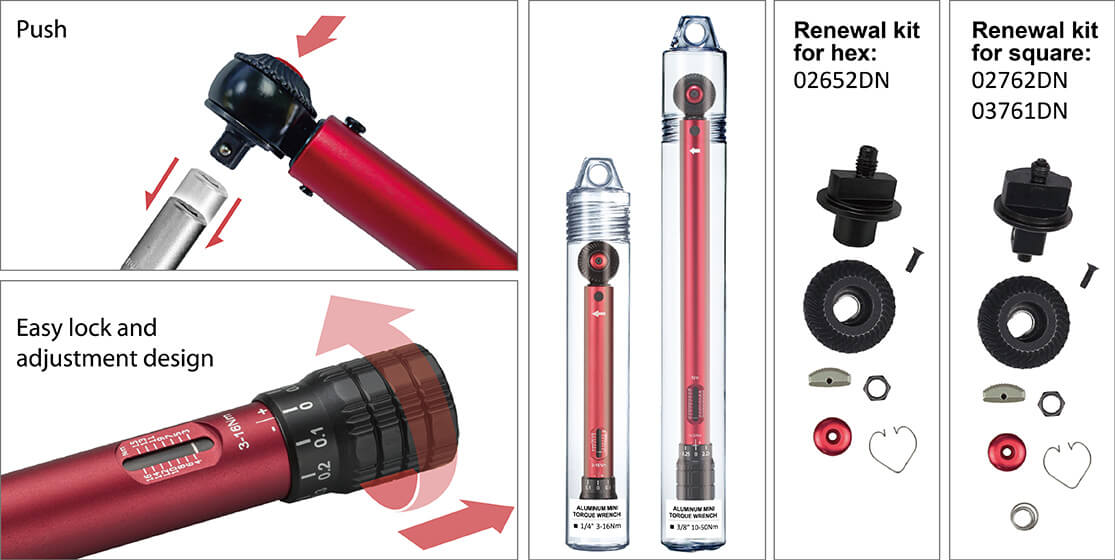

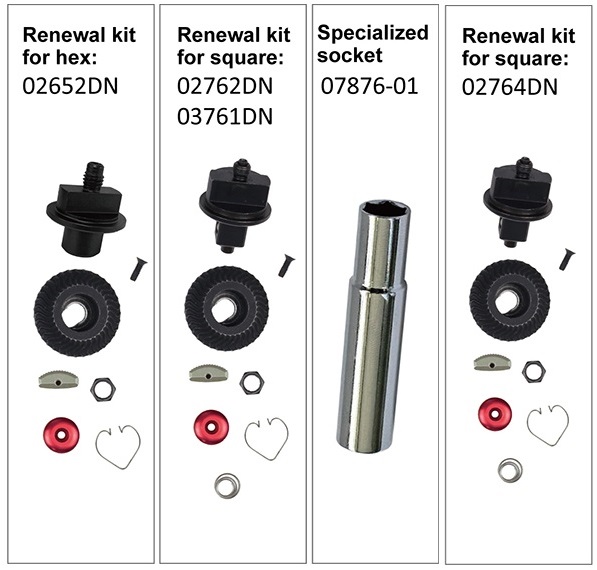

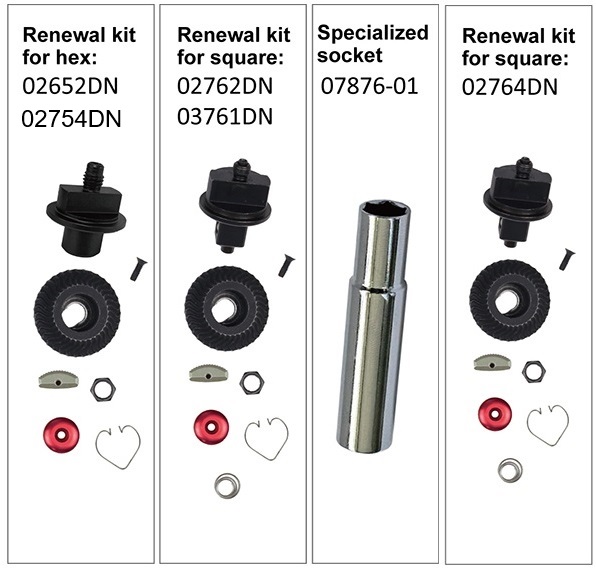

  1. 72 teeth ratchet head: A highly robust ratchet mechanism for CW and CCW directions application. Quick released design for changing socket quickly. Repair kit for inner spare parts of ratchet head is available.
  2. Reliable mechanism: Lightweight anodic aluminum body with super short length. An audible and palpable signal indicates automatically when the desire torque value is achieved.
  3. Serial number: Each piece stamping serial number for traceability.
  4. Scales: Window type; easily readable.
  5. Micrometer scale: For more accurate torque value setting.

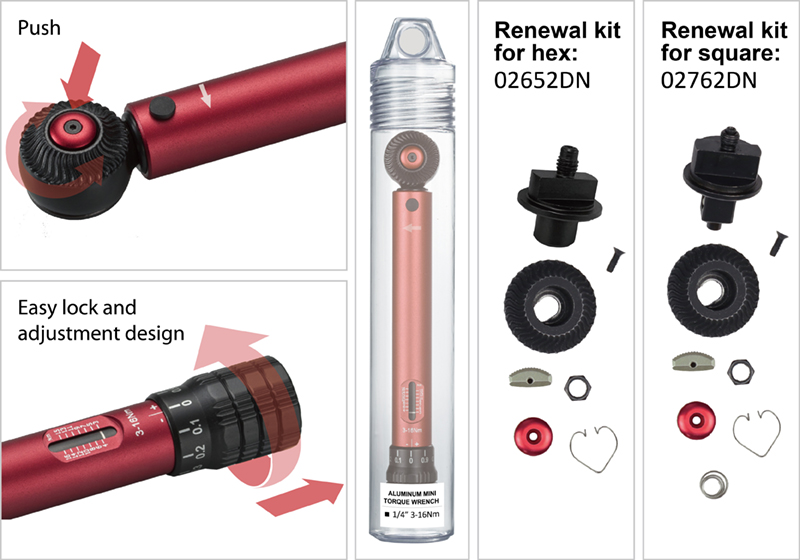

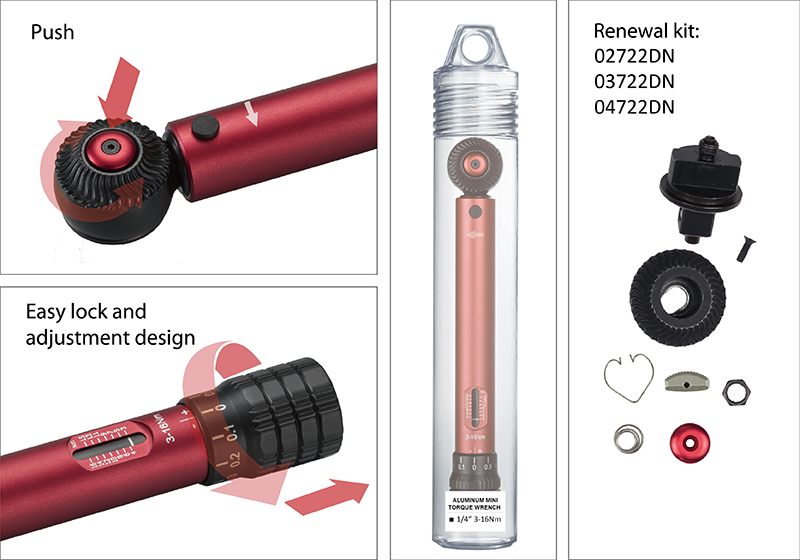

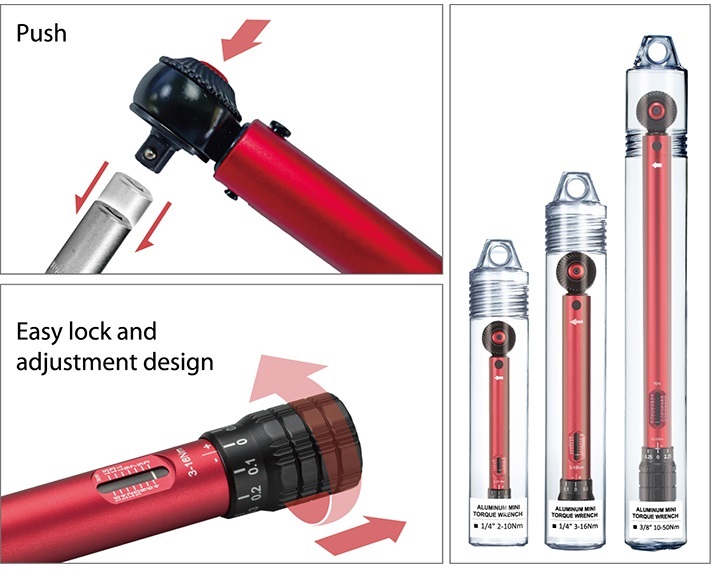

  6. Adjustment system: Easy torque adjustment by press down the knob, enables reliable locking of the torque setting.
proimages/products/Aluminum_mini_torque_wrench/自行車扭扳操作應用圖-02.jpg
Cycling Industry

Cycling Industry

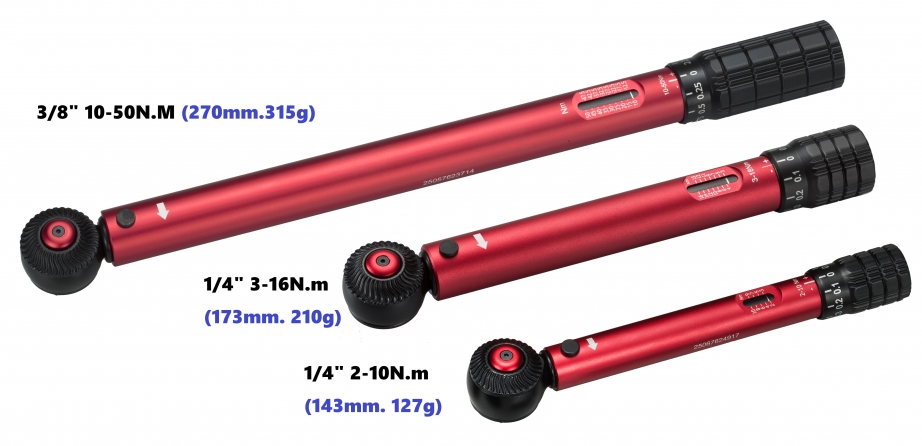

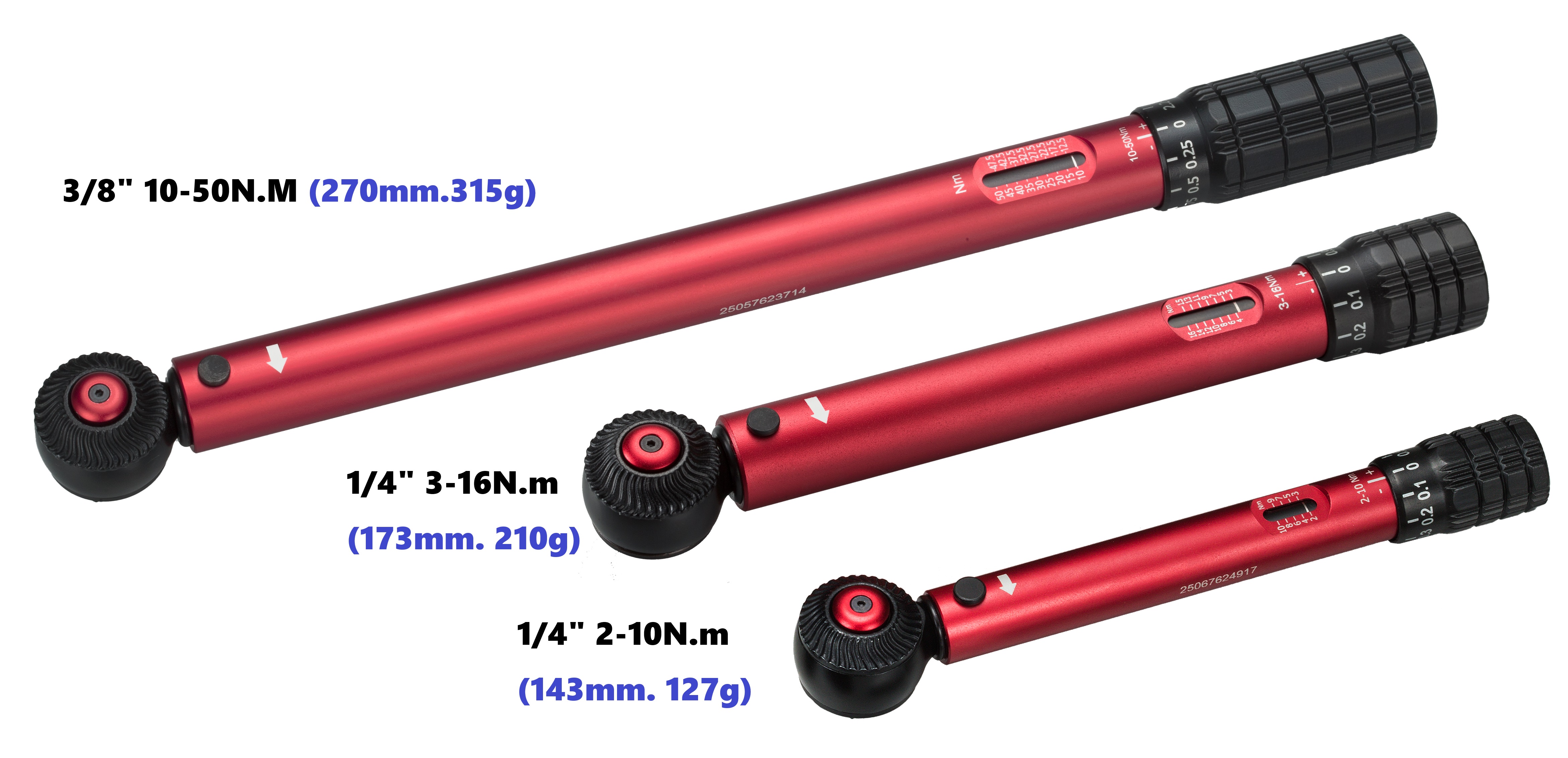

TT NO.TeethNm (in-lb)GraduationgL(mm)case/CTN
66275-2E 1/4" 72T 30-140 1 210 173 24
66275-2F 1/4" 72T 3-16 0.1 210 173 24

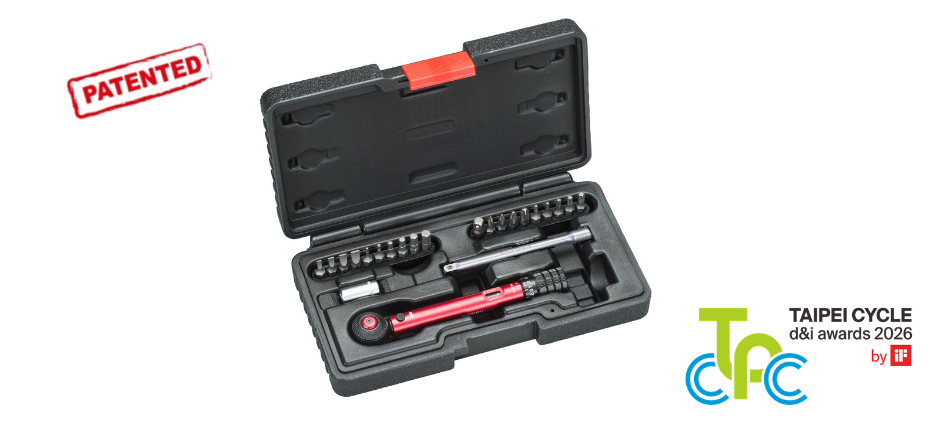

TT NO.TeethNm (in-lb)BitgL(mm)case/CTN

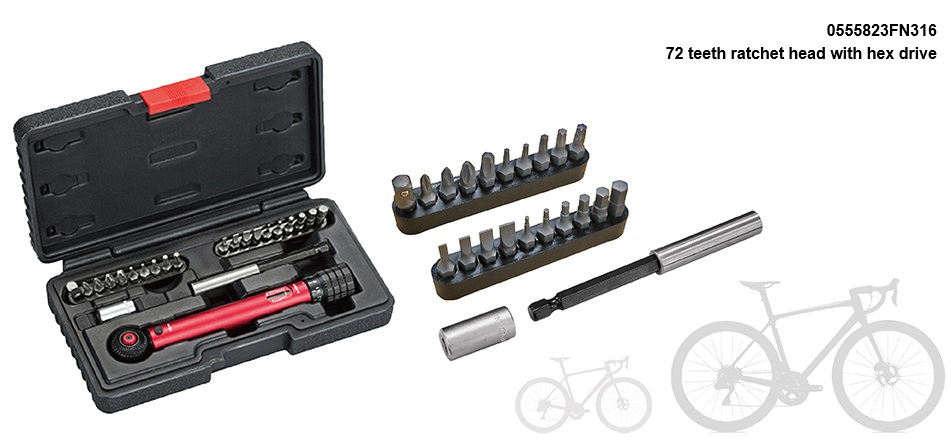

0555823EN314 1/4" 72T 30-140 H1.5,2,3,4,5,6
T8,9,15,20,25
SL3,4,5,6
PH0,1,2,3
1/4”AD
1/4” bit holder
1/4” socket extension
590 173 24
0555823FN316 1/4" 72T 3-16 590 173 24
TT NO.proimages/icon/square-w.pngTeethNm (in-lb)GraduationgL(mm)case/CTN
66276-2E 1/4" 72T 30-140 1 210 173 24
66276-2F 1/4" 72T 3-16 0.1 210 173 24
66376-1E 3/8" 72T 100-500 2.5 315 270 24
66376-1F 3/8" 72T 10-50 0.25 315 270 24

TT NO.proimages/icon/square-w.pngTeethNm (in-lb)BitgL(mm)case/CTN

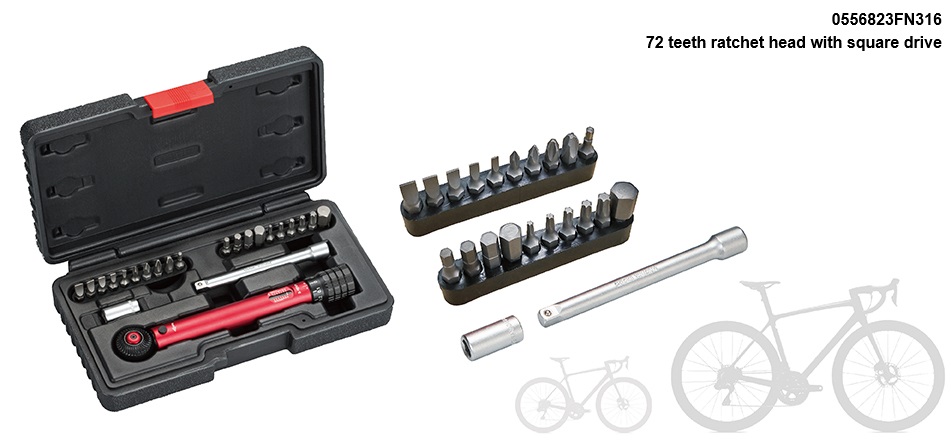

0556823EN314 1/4" 72T 30-140 H3,4,5,6,8,10
T10,15,20,25,30
SL3,4,5,5.5,6
PH0,1,2,3
1/4” bit holder
1/4” socket extension
590 173 24
0556823FN316 1/4" 72T 3-16 590 173 24

Ans: The Torque-Tech mini cycling torque wrench is available in torque range from 3 to 50 N.m, with a fine resolution, offering high accuracy across a wide variety of applications. The lower range is ideal for precision tasks in bicycle maintenance—such as adjusting carbon components, stems, and seat posts—while the higher range supports more demanding needs like e-bike assembly, cranksets, and even light motorcycle repair. This versatility makes it suitable for both professional technicians and cycling enthusiasts who require reliable and accurate torque control.

Ans: Yes, this mini cycling torque wrench supports dual-direction usage—both clockwise (CW) and counter-clockwise (CCW)—making it suitable for various bicycle applications and screw orientations. At present, we do clockwise calibration only as usual.

Ans: The mini cycling torque wrench body is made of 6061 aluminum alloy, combined with anodized surface treatment to create a visual impression. The inner wall of the aluminum tube is reinforced to enhance its long-term durability.
It complies with international standards DIN ISO 6789 and ASME B107.300-2010, and each unit is individually calibrated to an accuracy of ±4% before shipment.

Ans: To maintain long-term accuracy and avoid spring fatigue, it is recommended to set the wrench to its lowest torque value (e.g., 3 Nm or the minimum on the scale) before storage.

Ans: This is a click-type mini cycling torque wrench. Once the preset torque value is reached, it will emit a distinct “click” sound and feel, indicating that no further force should be applied.

Ans: Calibration is performed using certified torque testers that measure multiple points (usually the lowest, 60% to 100% of full scale) in clockwise(CW) direction.
Each mini cycling torque wrench is adjusted to meet ±4% tolerance and provided with a traceable calibration record.
For frequent users, calibration is recommended every 6 months or after 5,000 cycles. For occasional use, once per year is generally sufficient.
