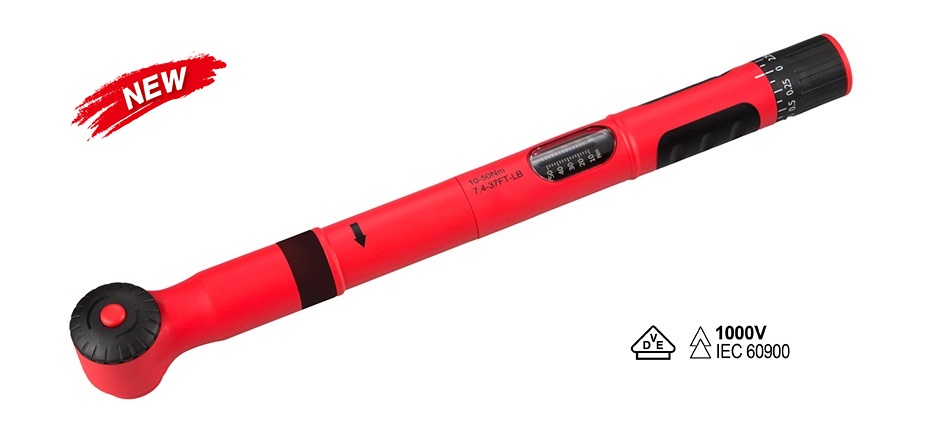

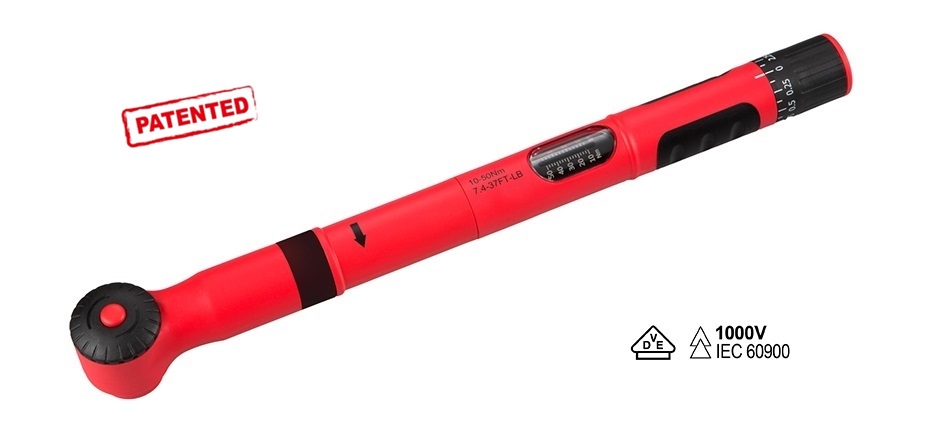

Product Name : VDE Insulated Torque Wrench

Tolerance of torque +/-3%.
Insulated click type torque wrench with robust 72 teeth ratchet.

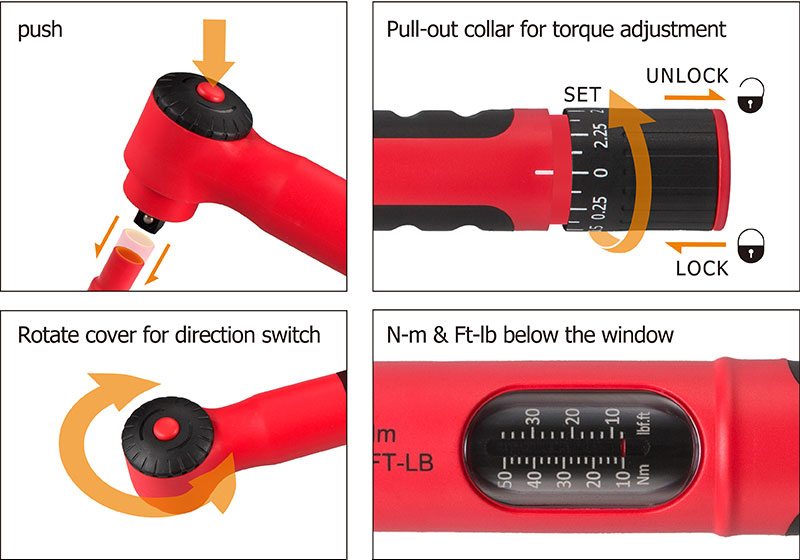

Quick release design.
Easy torque adjustment with pull-out collar design brings the energy-saving benefit.
Additional micrometer scale for accurate torque setting.
Easy-to-read dual scale N-m and Ft-lb below the window.
Applied to both clockwise and counterclockwise directions.
Ensure safety on electrical equipment up to 1000V AC or 1500V DC.
Ideal for use on hybrid and electric vehicles.
Ergonomic insulated grip provides protection against electric shock.
Quality meets VDE international standard - IEC 60900.
Quality meets DIN ISO 6789 & ASME B107.300.2010.

Q'ty :

Inquiry

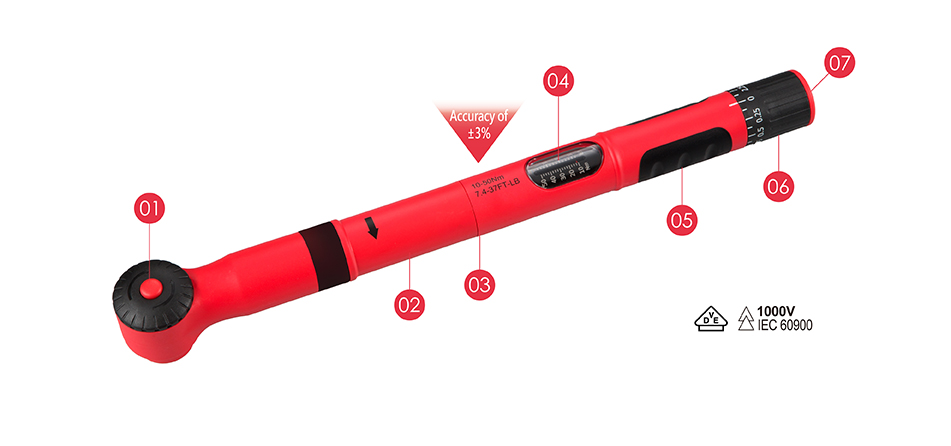

72 teeth ratched head: A highly robust ratchet mechanism for CW and CCW directions application. Quick released design for changing socket quickly.
Reliable mechanism: Equipped with a durable fully chromed steel tube mechanism for industrial applications. An audible and tactile click clearly indicates when the preset torque is reached.
Insulated with red PP and a black ring-shaped TPR flame-retardant composite, providing high impact resistance and reliable protection for electrical work.
Serial number: Each piece lasering serial number for traceability.
Scales: Dual scale (N·m / ft-lb) with a clear PC window design. High-contrast white markings on a black background ensure excellent readability.
Ergonomic insulated grip: Flame-retardant red PP and black TPR construction ensures reliable protection against electric shock.
Adjustment system: Pull-out knob design allows easy torque adjustment with automatic locking of the preset torque setting.
End cap: Flame retarded PP for safety.

Electrical Safety Applications

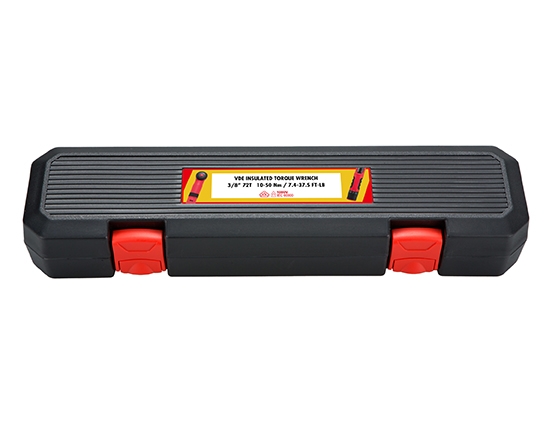

Packing: BMC

TT NO.	Square drive	Teeth	Nm	lbf.ft	Graduation	g	L(mm)	case/CTN
35276-1F	1/4"	72T	2-10	1.5-7.4	0.1	-	-	-
35276-2F	1/4"		5-25	3.5-18	0.2	-	-	-
35376-1F	3/8"		10-50	7.4-37	2.5	860	364	12
35376-2F	3/8"		20-100	14.8-74	5	-	-	-
35476-1F	1/2"		10-50	7.4-37	2.5	860	364	12
35476-2F	1/2"		20-100	14.8-74	5	-	-	-
