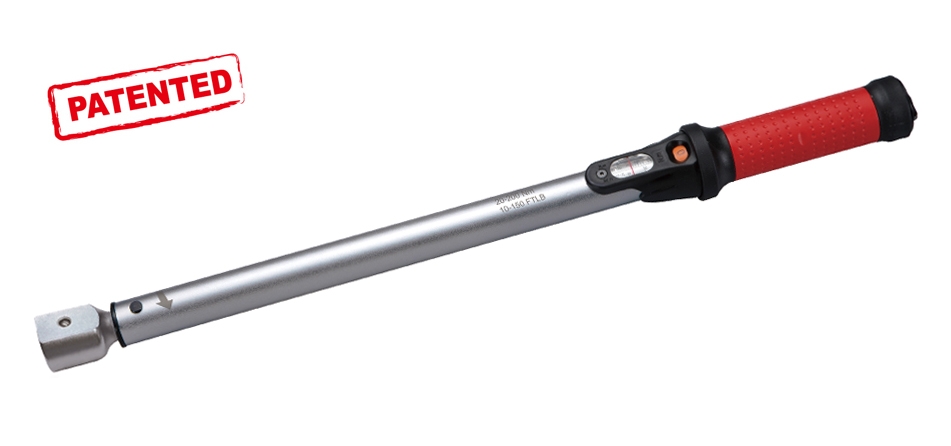

Interchangeable Robust Torque Wrench (rectangular cavity)

Product Name : Interchangeable Robust Torque Wrench (rectangular cavity)
Features
  • Use with standard insert tools(9*12 & 14*18 rectangular cavity).
  • Quick released button design for easy insert head removal.
  • Easily readable dual scale N-m and lbf-ft below window.
  • Additional micrometer scale for setting interim value.
  • Ergonomically shaped and convenient plastic handle grip.
  • Locking button enables reliable locking of the torque setting.
  • Applied to both clockwise and counterclockwise directions.
  • Quality meets DIN ISO 6789 & ASME B107.300-2010.
  • Tolerance of torque +-3%.
Inquiry
Product Introduction
proimages/products/Window_Scale_Torque_Wrench_/Interchangeable_Robust_Torque_Wrench_rectangular/LG更換式特點說明_工作區域_1.jpg
  1. Rectangular cavity head:

    Quick released button design for changing insert tools quickly.

    It is available for standard insert tools 9*12 & 14*18.

  2. Reliable mechanism: The robust and resistant fully chromed steel tube is ideal of industrial use.
  3. Serial number: Each piece stamping serial number for traceability.
  4. Scales: Dual scale window type; easy readable for two different units Nm/ lbf.ft.
  5. Micrometer scale: For more accurate torque value setting with big number below window.
  6. NBR handle: Ergonomic shape with non-slip and comfortable features.

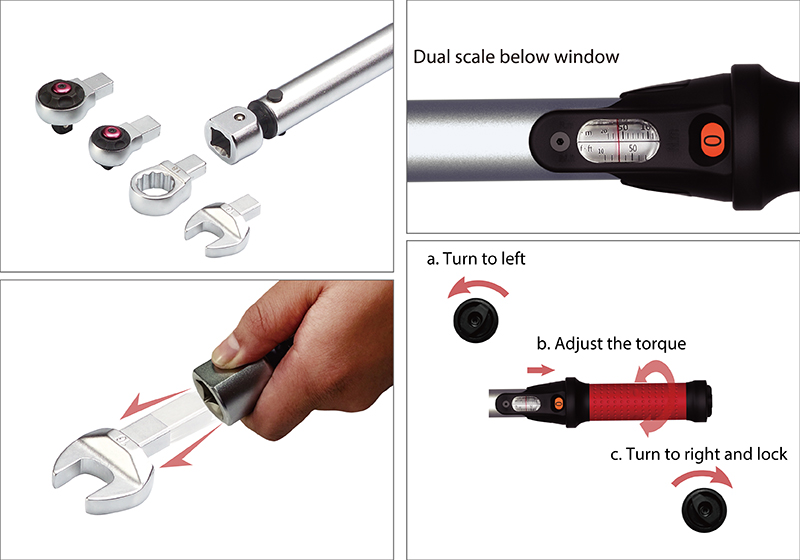

  7. Adjustment system:

    Locking button enables reliable locking of the torque setting.

    Turn switch CCW direction to "UNLOCK" the wrench for torque setting; turn switch CW direction to "LOCK".

proimages/products/Window_Scale_Torque_Wrench_/Interchangeable_Robust_Torque_Wrench_rectangular/LG更換操作應用圖-01.jpg
TT NO.mmNmlbf.ftGraduationL(mm)gcase/CTN
33612-2F 9*12 2~25 1.5~18 0.1 290 440 24
33612-3F 5~25 3.6~18 0.1 290 440 24
33613-2F 5~50 3.5~37 0.25 340 530 24
33613-3F 10~50 7.4~37 0.25 340 530 24
33614-1F 10~100 8~75 0.5 410 1030 12
33614-4F 20~100 15~75 0.5 410 1030 12
33624-1F 14*18 10~100 8~75 0.5 440 1050 12
33624-2F 20~200 10~150 1 510 1230 12
33624-3F 60~300 45~220 1 597 1400 12
33624-4F 20~100 15~75 0.5 440 1050 12
33624-5F 40~200 30~150 1 510 1230 12
33626-1F 100~600 75~440 2 980 3890 2
33626-2F 150~800 110~590 5 1060 4300 2
33626-3F 200~1000 150~740 5 1060 4300 2
