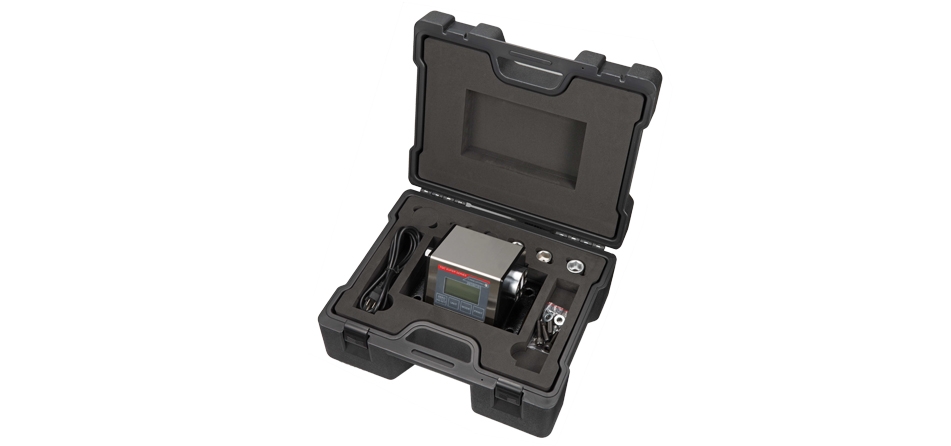

TQC Super Torque Tester

Product Name : TQC Super Torque Tester
Features
  • Under a constant speed to test the torque wrench in accordance with DIN ISO 6789 & ASME B107.300-2010 requirements.
  • Metrological accuracy ensuring reliability of test results.
  • Easy to operate of torque.
Video
Inquiry
  1. Specialized torque testing equipment designed for the variety of mechanical torque wrenches.
  2. Simple, accurate and cost-effective torque tester for performing calibration checks in house.
  3. High speed of data reading performance(2400 run/sec)
  4. RS-232 communication port is included for the output of reading to PC.
  5. There are six torque units available for application(Lb-ft, Lb-in, N-m, N-cm, kg-m, kg-cm)
  6. As standard, all transducers are calibrated in a clockwise direction with a traceable calibration certificate.
  7. Quality meets BS7882:1997 standard with the accuracy of +-0.5% of reading over the 20%~100% of full scale.
  8. With three operating modes: "Track" displays the live value' "Peak" records the highest value and "First Peak" records the first peak of torque.
  9. Under "First Peak" mode, the "light signal" and "Buzzer" indicate the testing completion and testing return to zero.
  10. Memory function can display the 4 previous readings taken by the operator. It's no need to stop and write after each reading.
ModelTW-7718-60TW-7718-400TW-7718-1500
Calibration Range 2~60Nm 8~400Nm 100~1500Nm
Accuracy +-0.5% +-0.5% +-0.5%
Units of Measurement Lb-in, Lb-ft, Kg-m, Kg-cm, Nm, N-cm Lb-in, Lb-ft, Kg-m, Kg-cm, Nm, N-cm Lb-in, Lb-ft, Kg-m, Kg-cm, Nm, N-cm
System Resolution (Nm) 0.001 0.01 0.1
Input Hex A/F (mm) 10mm 22mm 36mm
Square Drive Adaptor 1/4", 3/8", 1/2" 3/8", 1/2", 3/4" 3/4"
Operating Temperature Range +5ﾟC~ +40ﾟC +5ﾟC~ +40ﾟC +5ﾟC~ +40ﾟC
Storage Temperature Range +0ﾟC~ +70ﾟC +0ﾟC~ +70ﾟC +0ﾟC~ +70ﾟC
Power Cable 200mm 200mm 200mm
Power Consumption (watt) 5 5 5
AC Power Input DC9.0V_1.66A, 15W MAX DC9.0V_1.66A, 15W MAX DC9.0V_1.66A, 15W MAX
Base Material/ Finish Iron Alloy/ Painting Iron Alloy/ Painting Iron Alloy/ Painting
Dimension (L*W*H) 210*150*140mm 210*150*140mm 210*150*140mm
Weight 7.7kg 8.1kg 8.9kg
