Adjustable Robust Torque Wrench

Product Name : Adjustable Robust Torque Wrench
Features
  • Easliy readable dual scale N-m/ lbf-ft below a window.
  • Loud click sound and strong impulse when required torque is reached.
  • Ergonomically shaped and convenient plastic handle grip.
  • Locking button enables reliable locking of the torque setting.
  • Tolerance of torque ±3%.
  • Quality meets DIN ISO 6789 & ASME B107.300-2010.

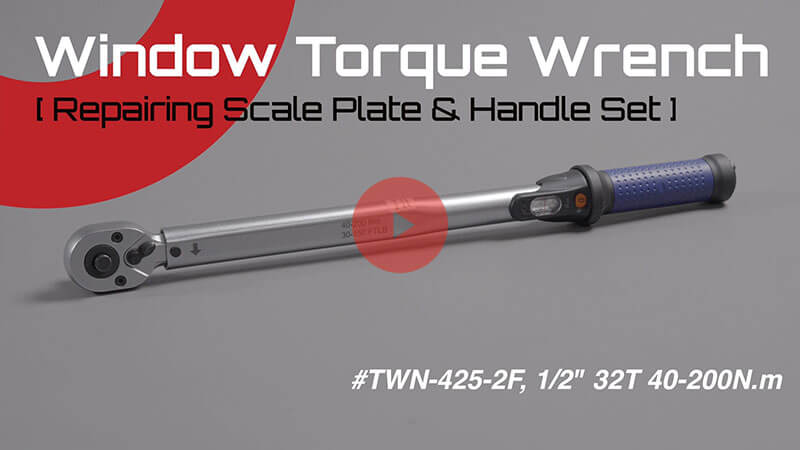

Video
Inquiry
Product Introduction
proimages/products/Window_Scale_Torque_Wrench_/Robust_Torque_Wrench/G型特點說明_工作區域_1.jpg

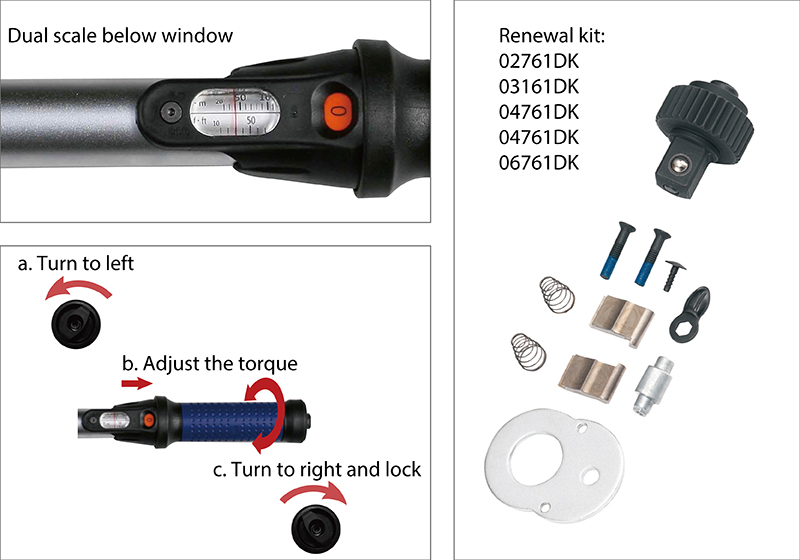

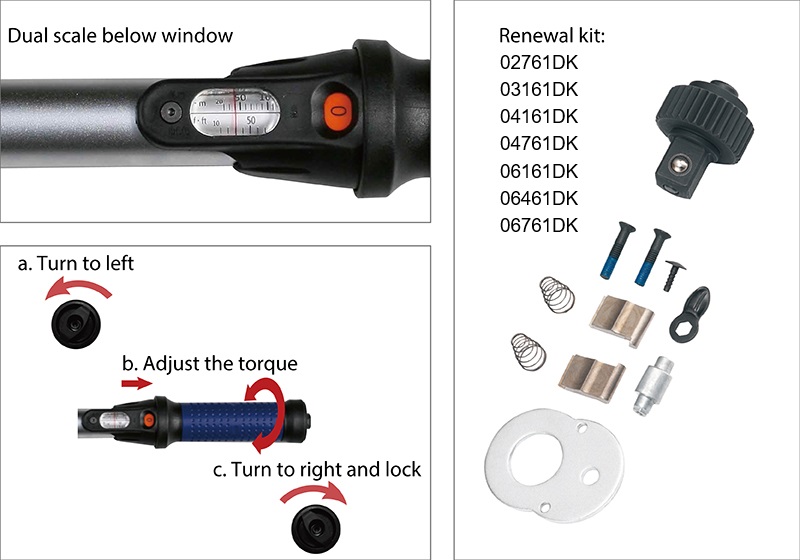

  1. Ratchet head: A highly robust ratchet mechanism for CW directions application. Quick released design for changing socket quickly. Repair kit for inner spare parts of ratchet head is available.
  2. Reliable mechanism: The robust and resistant fully chromed steel tube is ideal of industrial use. Thin head and flat tube is suitable for narrow working environment. Loud click sound and strong impulse when required torque is reached.
  3. Serial number: Each piece stamping serial number for traceability.
  4. Scales: Dual scale window type; easy readable for two different units.
  5. Micrometer scale: For more accurate torque value setting.
  6. NBR handle: Ergonomic shape with non-slip and comfortable features.
  7. Adjustment system:

    Locking button enables reliable locking of the torque setting.

    Turn switch CCW direction to "UNLOCK" the wrench for torque setting; turn switch CW direction to "LOCK".

proimages/products/Window_Scale_Torque_Wrench_/Robust_Torque_Wrench/G型操作應用圖-01.jpg
TT NO.Square driveTeethNmlbf.ftGraduationL(mm)gcase/CTN
TW-225-2F 1/4” 24T 2~25 1.5~18 0.1 296 410 24
TW-325-2F 3/8” 24T 5~50 3.5~37 0.25 333 470 24
TW-425-1F 1/2” 32T 10~100 8~75 0.5 400 820 12
TW-425-2F 20~200 10~150 1 500 1300 12
TW-425-3F 60~300 45~220 1 635 1470 12
TW-625-1F 3/4" 24T 100~600 75~440 2 1040 4650 2
TW-625-2F 150~800 110~590 5 1240 5450 2
TW-625-3F 200~1000 150~740 5 1240 5450 2
