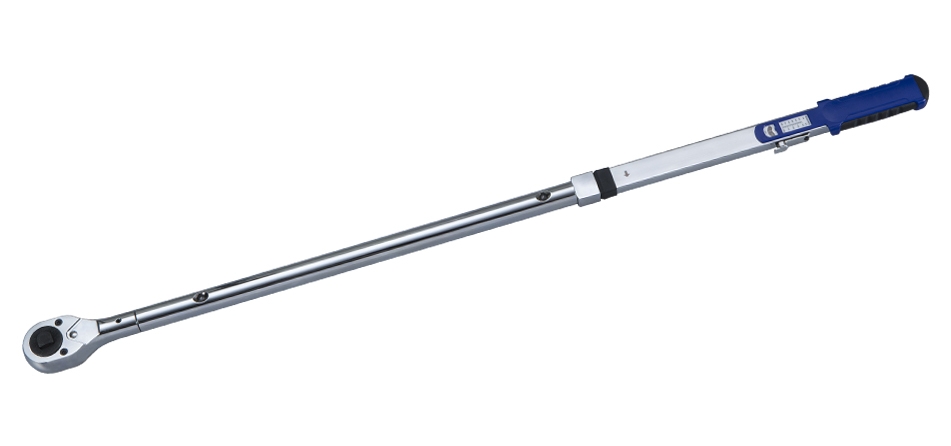

Push-Thru Split-Beam Torque Wrench

Product Name : Push-Thru Split-Beam Torque Wrench
Features
  • Torque of tolerance +-4%.
  • Non coil-spring mechanism and no need to return to zero after use, which brings longer tool life.
  • Knob-type torque adjustment is faster and more enegery-efficient.
  • Toothed hinge cover contains the lock function, which can prevent setting from being changed accidentally.
  • Torque setting can be easily read through the window scale.
  • Conversion table to Ft-lb displayed on the handle.
  • TPR cushion handle provides comfort, easy control and oil-resistance.
  • Loud click sound and strong impulse when required torque is reached.
  • Applied to both clockwise and counterclockwise directions.
  • Quality meets DIN ISO 6789 & ASME B107.300-2010.
Video
Inquiry
Product Introduction
proimages/products/Split-Beam_Torque_Wrench_/Push-Thru_Split-Beam_Torque_Wrench/彈片穿透特點說明_工作區域_1_up.jpg
  1. Ratchet head: A highly robust ratchet mechanism. Repair kit for inner spare parts of ratchet head is available. With Push-Thru drive allows CW/CCW directions for tightening.
  2. Reliable mechanism: Non coil-spring mechanism and no need to return to zero after use, which brings longer tool life.
  3. Hinge cover: Toothed guard contains the lock function, which can prevent setting from being changed accidentally.
  4. The window scale: The conversion table to N.m displayed on the handle. The main reading window scale for single unit while operation.
  5. Grip handle: TPR cushion handle provides comfort, easy control and oil-resistance.
proimages/products/Split-Beam_Torque_Wrench_/Push-Thru_Split-Beam_Torque_Wrench/彈片穿透操作應用圖_工作區域_1.jpg
proimages/products/Split-Beam_Torque_Wrench_/Flexible_Split-Beam_Torque_Wrench/彈片操作應用圖2_工作區域_1.jpg
TT NO.Head TypeDrive TeethNmGraduationgL(mm)case/CTN
68328-1F Fixed Ratchet 3/8" 32T 14-68 2 950 475 12
68328-2F 25-130 5 950 475 12
68428-1F Fixed Ratchet 1/2" 32T 40-200 5 1700 590 10
68428-2F 70-350 5 1700 590 10
68628-2F Detach-Ratchet 3/4" 24T 270-800 10 5450 1265 2
TT NO.Head TypeDriveTeethft-lb(in-lb)GraduationgL(mm)case/CTN
68328-1C Fixed Ratchet 3/8" 32T 10-50 1 950 475 12
68328-2C 20-100 2 950 475 12
68328-3C 120-600 10 950 475 12
68428-1C Fixed Ratchet 1/2" 32T 30-150 5 1700 590 10
68428-2C 50-250 5 1700 590 10
68628-2C Detach-Ratchet 3/4" 24T 200-600 10 5450 1265 2
