Open Ended Insert Tools

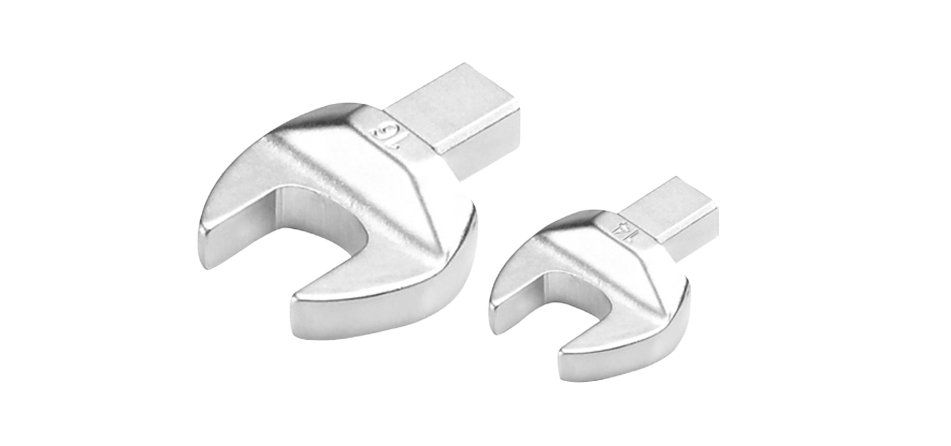

Product Name : Open Ended Insert Tools
Features
  • Chrome-plated.
  • Full range for choice.
  • CR-V steel.
Inquiry
Product Introduction
proimages/products/Torque_Wrench_Accessories/Open_Ended_Insert_Tools/接頭線稿-05.jpg
TT NO.SIZEmmLw*(mm)L(mm)WT
7411-07W 07 9×12 17.5 37.6 20.7 5.7
7411-08W 08 17.5 37.6 22 5.7
7411-09W 09 17.5 37.6 23.5 5.7
7411-10W 10 17.5 39.8 24.8 5.7
7411-11W 11 17.5 39.8 26 5.7
7411-12W 12 17.5 39.8 27.5 5.7
7411-13W 13 17.5 40 28.8 5.7
7411-14W 14 20 43 31.5 7.7
7411-15W 15 20 44 33.5 7.7
7411-16W 16 20 44 36 7.7
7411-17W 17 20 44 37.7 7.7
7411-18W 18 20 45.2 39 7.7
7411-19W 19 20 45.2 41.6 7.7
7411-21W 21 25 52.2 45.5 11.5
7411-22W 22 25 52.2 47.3 11.5
7411-24W 24 25 54 50.8 11.5
7411-25W 25 32.5 60 58.7 13
7411-26W 26 32.5 60 58.7 13
7411-27W 27 32.5 60 58.7 13
7411-29W 29 32.5 61.6 62.7 13.5
7411-30W 30 32.5 61.5 63.7 13.5
7411-32W 32 32.5 63 65 13.5
7411-36W 36 32.5 64.8 67.5 13.5

TT NO.SIZEmmLw*(mm)L(mm)WT
7412-13W 13 14×18 25 58 29.5 7
7412-14W 14 25 58 31.4 7
7412-15W 15 25 58 33.5 7
7412-16W 16 25 58.5 36 7
7412-17W 17 25 59.5 37 9
7412-18W 18 25 60.4 39 9
7412-19W 19 25 61.5 40.6 9
7412-21W 21 25 61.5 45.5 11
7412-22W 22 25 62.3 47.3 11
7412-23W 23 25 62.3 47.8 11
7412-24W 24 25 63.2 50.8 11
7412-25W 25 30 69 58.4 13.8
7412-26W 26 30 69 58.4 13.8
7412-27W 27 32.5 69 58.4 13.8
7412-30W 30 32.5 70.5 62.5 13.8
7412-31W 31 32.5 72.5 65 13.8
7412-32W 32 32.5 72.5 65 13.8
7412-34W 34 32.5 74 67.5 13.8
7412-36W 36 32.5 74 67.5 13.8
7412-38W 38 32.5 74 67.5 13.8
7412-40W 40 40 80.5 83.4 13.8
7412-41W 41 40 80.5 82.3 13.8
7412-46W 46 50 91.1 98.6 20
7412-48W 48 50 96.9 105 30.5
7412-50W 50 50 96.9 105 30.5
7412-55W 55 52.9 96.9 105 30.5
7412-70W 70 84.5 136.2 149.2 33.5

TT NO.SIZEmmLw*(mm)L(mm)WT
7311-0104W 1/4" 9×12 17.5 37.5 20.7 5.7
7311-0516W 5/16" 17.5 37.9 22 5.7
7311-0308W 3/8" 17.5 39.9 24.8 5.7
7311-0716W 7/16" 17.5 39.1 26 5.7
7311-0102W 1/2" 17.5 40 28.8 5.7
7311-0916W 9/16" 20 14.7 31.5 7.7
7311-0508W 5/8" 20 14.7 36 7.7
7311-1116W 11/16" 20 14.7 39 7.7
7311-0304W 3/4" 20 14.7 41.6 7.7

TT NO.SIZEmmLw*(mm)L(mm)WT
7312-0102W 1/2" 14×18 25 57.5 29.6 7
7312-0916W 9/16" 25 58 31.3 7
7312-0508W 5/8" 25 58.5 35.8 7
7312-1116W 11/16" 25 60 38.6 9
7312-0304W 3/4" 25 60.5 40.6 9
7312-1316W 13/16" 25 61 45.2 11
7312-0708W 7/8" 25 62 47.3 11
7312-0100W 1" 32.5 69 58.7 13.5
7312-0908W 1-1/8" 32.5 70.6 62.7 13.5
7312-0504W 1-1/4" 32.5 72.1 65.2 13.5
7312-0302W 1-1/2" 32.5 72.7 66.5 13.5
7312-0200W 2" 55 100 103.5 22

When using an extension or adapter (increasing the effective length of the torque wrench), the output torque value will change.

Please refers to the table as below,



T = Output of Torque value

L = Distance between drive and hand position

Lw* = Length of adapter or extension

B = Wrench scale reading


*Hold the handle at the center point.

*L (Distance between drive and hand position) will be changed depends on B (Wrench scale reading)
