Product Name : Mini Torque Wrench
Features
  • Industrial application.
  • Tolerance of torque ±3%.
  • Quick release design.
  • Quality meets DIN ISO 6789 & ASME B107.300-2010.
Product Introduction
proimages/products/69_Industrial_Torque_Wrench_/Mini_torque_wrench/迷你型特點說明_工作區域_1.jpg

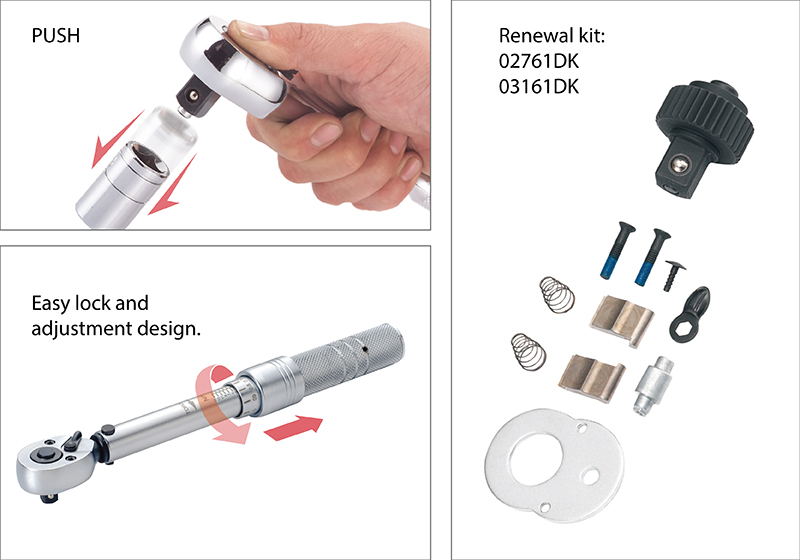

  1. Ratchet head: A highly robust ratchet mechanism for CW and CCW directions application. Quick released design for changing socket quickly. Repair kit for inner spare parts of ratchet head is available.
  2. Reliable mechanism: The robust and resistant fully chromed steel tube is ideal of industrial use. An audible and palpable signal indicates automatically when the desire torque value is achieved.
  3. Serial number: Each piece stamping serial number for traceability.
  4. Scales: Easy read laser scales is flexible for multi units and double scales for different market need.
  5. Micrometer scales: Very precise adjustment by visible micrometer laser scales on handle ensure optimal and simplified readings while operation. The micrometer scales for precision adjustment is in integral values, for user easily take round figure while operation.
  6. Lock ring: Easy torque adjustment by press down the Lock-ring, brings energy saving and automatically lock device to avoid accidentally altering setting.
  7. Knurled handle: Non-slip knurled handle design; customized color handle is available.
  8. End cap: Aluminum poly end cap with standard or customized design.
proimages/products/69_Industrial_Torque_Wrench_/Mini_torque_wrench/迷你型操作應用圖-01.jpg
TT NO.Square driveTeethNmGraduationL(mm)gcase/CTN
TW-266-1DW 1/4” 64T 3~15 0.1 210 288 24
TW-266-2DW 5~25 0.2 248 325 24
TW-266-6DW 1~6 0.05 210 288 24
TW-366-1DW 3/8” 64T 3~15 0.1 210 288 24
TW-366-2DW 5~25 0.2 248 325 24
TW-366-6DW 1~6 0.05 210 288 24
TT NO.Square driveTeethin-lbGraduationL(mm)gcase/CTN
TW-266-1E 1/4” 64T 30~150 1.0 210 288 24
TW-266-2E 50~250 2.0 248 325 24
TW-266-6E 10~60 0.5 210 288 24
TW-366-1E 3/8” 64T 30~150 1.0 210 288 24
TW-366-2E 50~250 2.0 248 325 24
TW-366-6E 10~60 0.5 210 288 24
