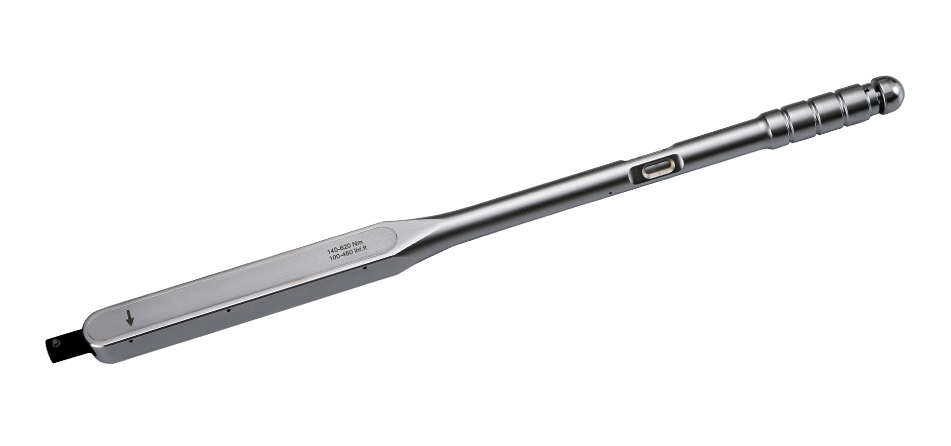

Interchangeable Alu. Torque Wrench

Product Name : Interchangeable Alu. Torque Wrench
Features
  • Industrial application with durability.
  • Applying to standard insert tools (Ø16 & Ø22 spigot end).
  • Positive button design which enable to remove the inserts head easily.
  • Lightweight yet robust; housing is made of aluminium alloy.
  • Multi-lever mechanism brings length independence and accurate torque.
  • Loud click sound and strong impulse when torque value reached.
  • Tolerance of torque ±3%.
  • Quality meets DIN ISO 6789 & ASME B107.300-2010.
Inquiry
Product Introduction
proimages/products/Aluminum_Torque_Wrench_/Interchangeable_Alu-Torque_Wrench/圓頭鋁製更換特點說明_工作區域_1_UP.jpg
  1. Spigot Driver:

    Chromium -Chromium - molybdenum alloy steel brings better strength, toughness, stability and life cycle.

    Applying to standard insert tools (Ø16 & Ø22 spigot end) and the push design to remove the inserts easily.

  2. Multi-lever mechanism: Integrated 3-lever chain mechanism brings length independence, greater sensitivity, high accuracy and a long-life cycle. For the main body, we use the high intensity aluminum alloy. The weight of Aluminum is extremely lighter than steel , good for long -time operation and heavy industry. Chrome-plating finish strengthens the material hardness & anti-collision.
  3. Scales: Dual-scales window of torque measurement (N.m. & Ft-lb).
  4. Handle: Nice-to-hold handgrip enables safe work and less operator fatigue.
  5. Energy saving torque-adjusting design: Quick pull out and easy adjustment with unique crank. It is suitable for heavy, aerospace industry, wind power industry and automation industries.
proimages/products/Aluminum_Torque_Wrench_/Aluminum_Torque_Wrench_/鋁製操作應用圖_工作區域_1.jpg
Aerospace & Marine Industry

Aerospace & Marine Industry

Wind Energy & Renewable Power

TT NO.Ø(mm)Nmlbf.ft (lbf.in)GraduationgL(mm)case/CTN
TW-653-2F Ø16mm 8-40 70-350 5 890 380 12
TW-654-1F 25-120 20-90 5 1150 500 12
TW-654-2F 80-400 60-300 5 1550 650 12
TW-666-3F Ø22mm 140-620 100-450 10 2900 860 12
