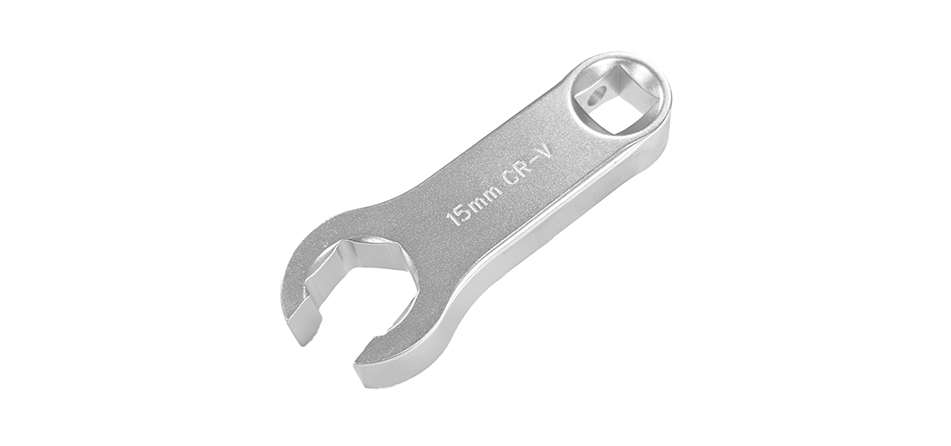

Flare Nut
FLARE NUT 7413

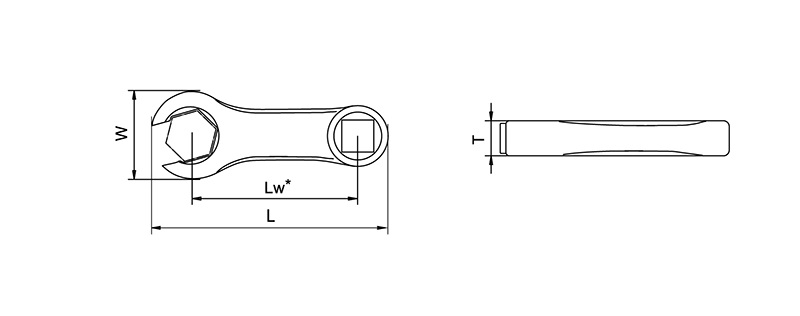

| TT NO. | SIZE | □ | Lw*(mm) | L(mm) | W | T |
|---|---|---|---|---|---|---|
| 7413-10W | 10 | 3/8" | 50.8 | 71 | 21 | 9 |
| 7413-11W | 11 | 71 | 21 | 9 | ||
| 7413-12W | 12 | 73 | 25 | 9 | ||
| 7413-13W | 13 | 73 | 25 | 9 | ||
| 7413-14W | 14 | 74 | 27 | 11 | ||
| 7413-15W | 15 | 74 | 27 | 11 | ||
| 7413-16W | 16 | 76 | 31 | 12.5 | ||
| 7413-17W | 17 | 76 | 31 | 12.5 | ||
| 7413-18W | 18 | 77.5 | 34 | 12.5 | ||
| 7413-19W | 19 | 77.5 | 34 | 12.5 | ||
| 7413-22W | 22 | 79.5 | 43 | 14.5 |
When using an extension or adapter (increasing the effective length of the torque wrench), the output torque value will change.
Please refers to the table as below,
T = Output of Torque value
L = Distance between drive and hand position
Lw* = Length of adapter or extension
B = Wrench scale reading
*Hold the handle at the center point.
*L (Distance between drive and hand position) will be changed depends on B (Wrench scale reading)
