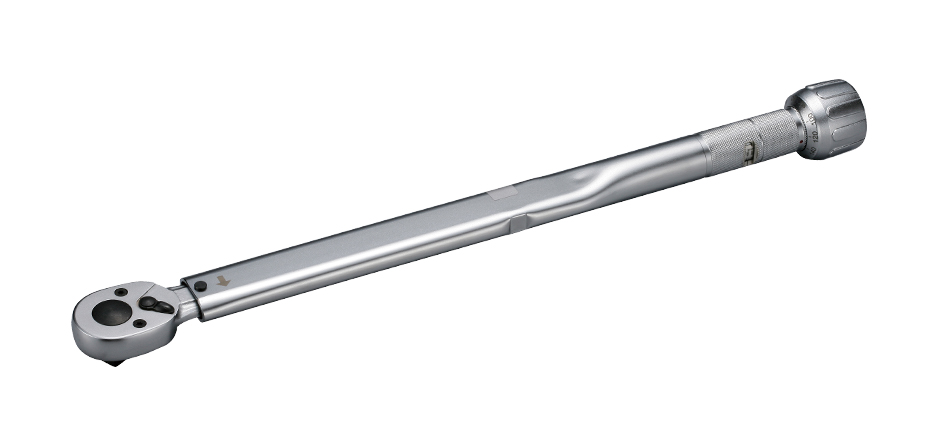

Adjustable Click Torque Wrench

Product Name : Adjustable Click Torque Wrench
Features
  • Industrial application with durability.
  • The mechanism of flat metal tube and window scale-reading.
  • Easy torque value setting with external scale and knob.
  • Loud click sound and strong impulse when required torque is reached.
  • Tolerance of torque ±3%.
  • Quality meets DIN ISO 6789 & ASME B107.300-2010.
Inquiry
Product Introduction
proimages/products/Click_Torque_Wrench/T型特點說明_工作區域_1.jpg
  1. Ratchet head: A highly robust ratchet mechanism for CW direction application. Repair kit for inner spare parts of ratchet head is available.
  2. Reliable mechanism: The robust and resistant fully chromed steel tube is ideal of industrial use. Thin head and flat tube is suitable for narrow working environment. An audible and palpable signal indicates automatically when the desire torque value is achieved.
  3. Serial number: Each piece stamping serial number for traceability.
  4. Scales: Window display with single scale.
  5. Knurled handle: Non-slip knurled handle design.

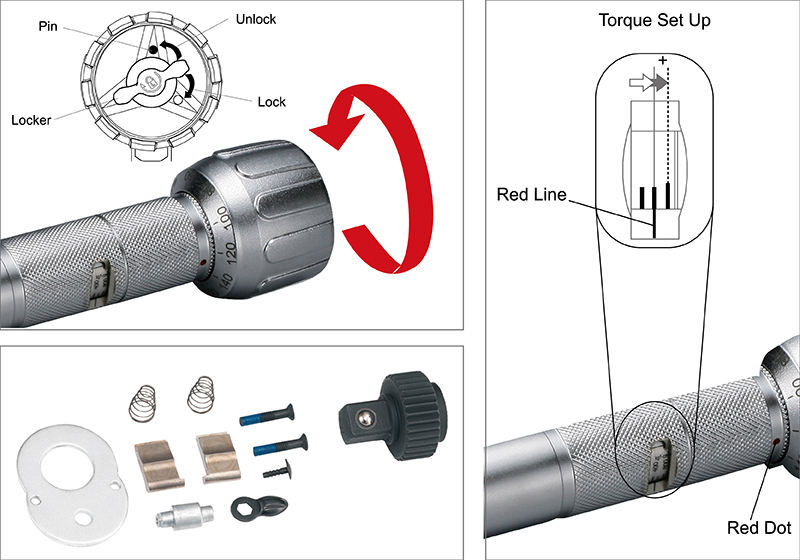

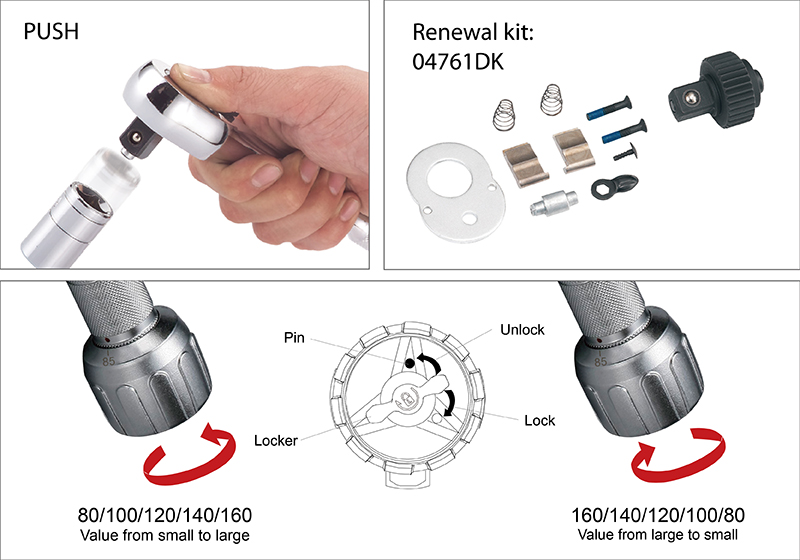

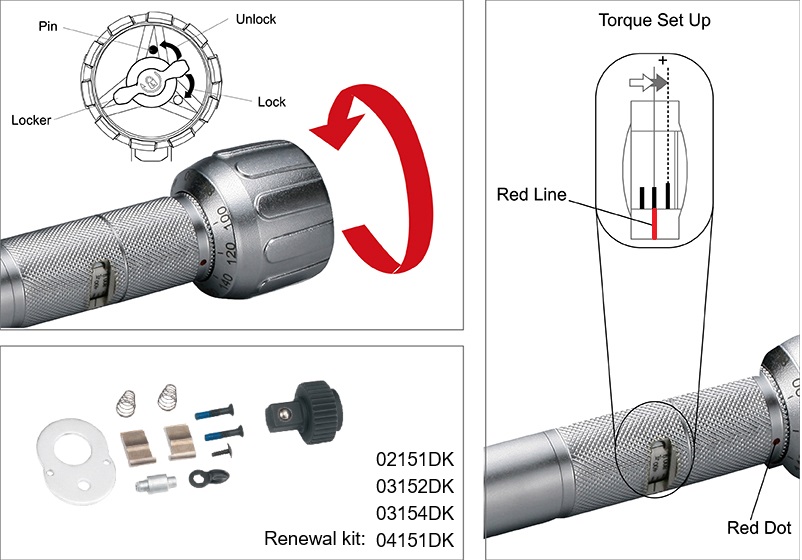

  6. Adjustment system: Wing shape design; turn knob CCW direction to "unlock" the wrench for torque setting; turn knob CW direction to "lock".
proimages/products/Multi-Range_Preset_Torque_Wrench/多段式定扭操作應用圖-01.jpgproimages/products/Click_Torque_Wrench/T型操作應用圖-01.jpg
TT NO.Square driveTeethNmGraduationL(mm)gcase/CTN
TW-215-1D 1/4” 24T 0.4~2 0.02 173 200 24
TW-215-2D 1~5 0.05 173 200 24
TW-215-3D 2~10 0.1 173 200 24
TW-215-4D 3~15 0.1 223 250 24
TW-215-5D 5~25 0.25 240 450 24
TW-315-3D 3/8” 24T 5~25 0.25 240 450 24
TW-315-4D 10~50 0.5 260 500 24
TW-315-5D 20~100 1 342 800 12
TW-415-1D 1/2” 24T 20~100 1 342 800 12
TW-415-2D 30~140 1 410 1000 12
TW-415-3D 40~200 2 498 1500 12
TT NO.Square driveTeethKgf.cmGraduationL(mm)gcase/CTN
TW-215-1K 1/4” 24T 4~20 0.2 173 200 24
TW-215-2K 10~50 0.5 173 200 24
TW-215-3K 20~100 1 173 200 24
TW-215-4K 30~150 1 223 250 24
TW-215-5K 50~250 2.5 240 450 24
TW-315-3K 3/8” 24T 50~250 2.5 240 450 24
TW-315-4K 100~500 5 260 500 24
TW-315-5K 200~1000 10 342 800 12
TW-415-1K 1/2” 24T 200~1000 10 342 800 12
TW-415-2K 300~1400 10 410 1000 12
TW-415-3K 400~2000 20 498 1500 12
