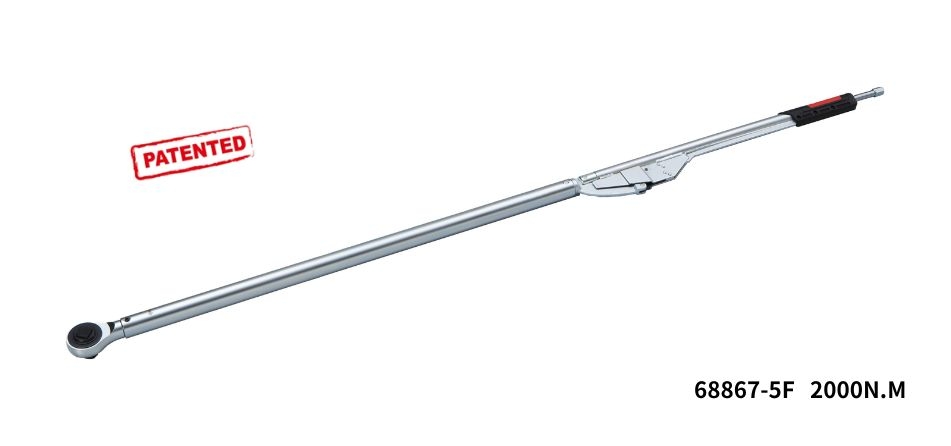

Adjustable Breakback Torque Wrench

Product Name : Adjustable Breakback Torque Wrench
Features
  • Industrial application with durability. Ideal for heavy duty area.
  • Push-through ratchet allows two direction tightening.
  • Torque measurement in clockwise direction only.
  • Unique linking plate and support plate design gives very clear"torque break point", which reduces the possibility of over-torquing, even in arduous working conditions.
  • Easily readable dual scale N-m and Ft-lb below a window.
  • Ergonomically shaped and comfort plastic handle grip.

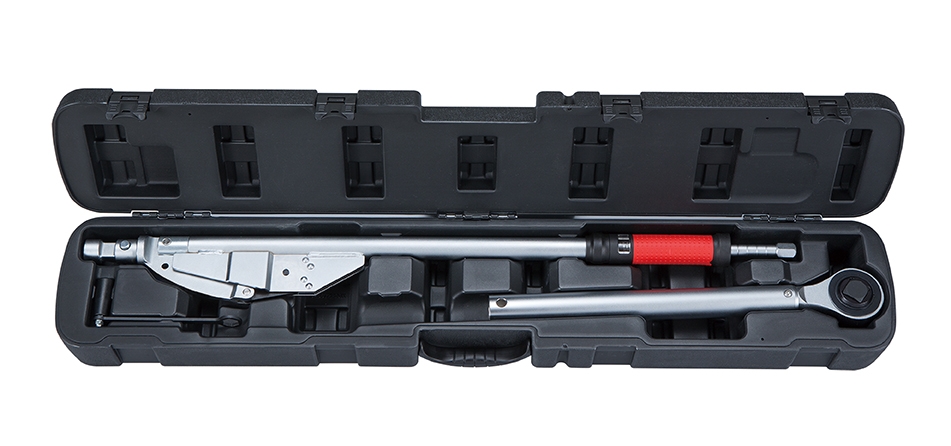

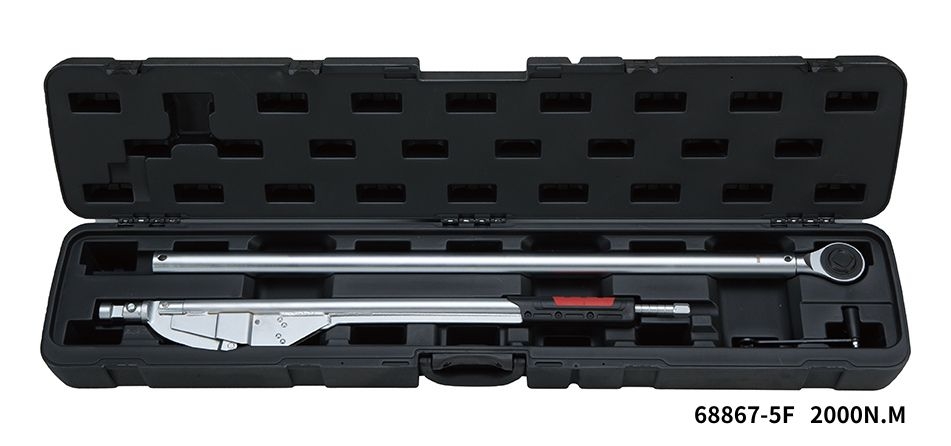

  • Can be split and packed in two parts for a smaller, easier to transport package.
  • Tolerance of torque ±4%.
  • Quality meets DIN ISO 6789 & ASME B107.300-2010.
Video
Inquiry
Product Introduction
Torque-Tech's breakback torque wrench with a tolerance of ±4%, it meets the quality standards of DIN ISO 6789 & ASME B107.300-2010 which easily readable dual scale N-m and Ft-lb below a window

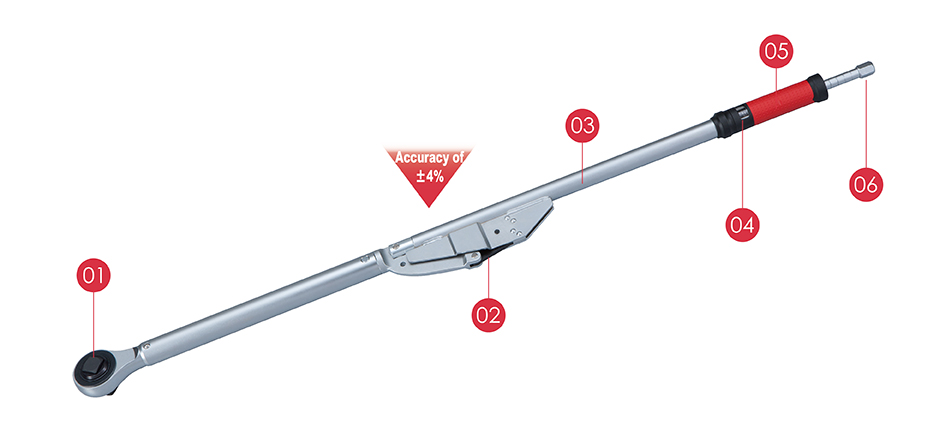

  1. Round head: A highly robust ratchet mechanism with inner 4 pawls mechanism design to bear large output value, without plate and screws to avoid loosing while operation. Push-through square drive.

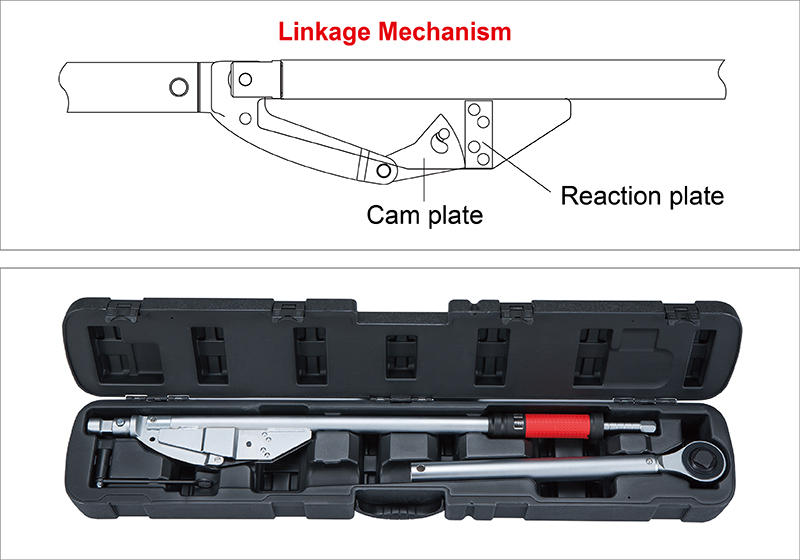

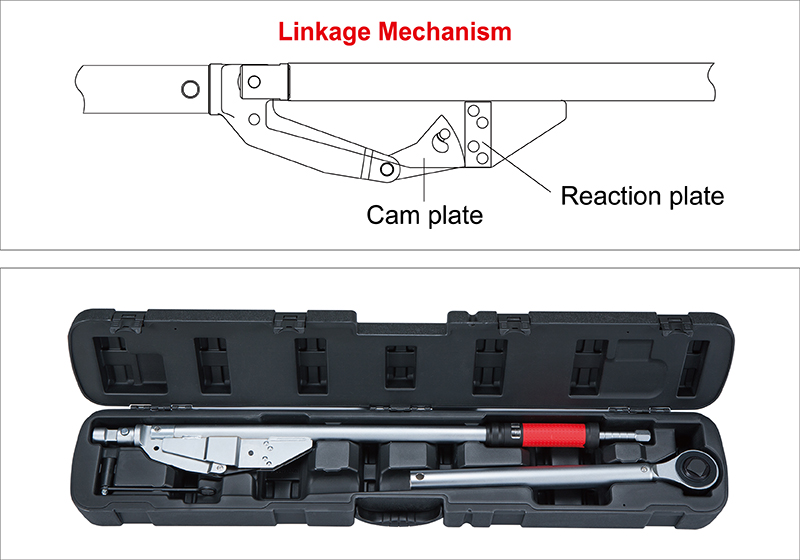

  2. Reliable mechanism: The unique linking plate and support plate design gives very clear "torque break point", which reduces the possibility of over torquing, even in arduous working conditions.
  3. Serial number: Each piece stamping serial number for traceability.
  4. Scales: Dual scale window type; easy readable for two different units.
  5. NBR handle: Ergonomic shape with non-slip and comfortable features.
  6. Adjustment system: Apply revolving handle to turn nut for torque adjustment.

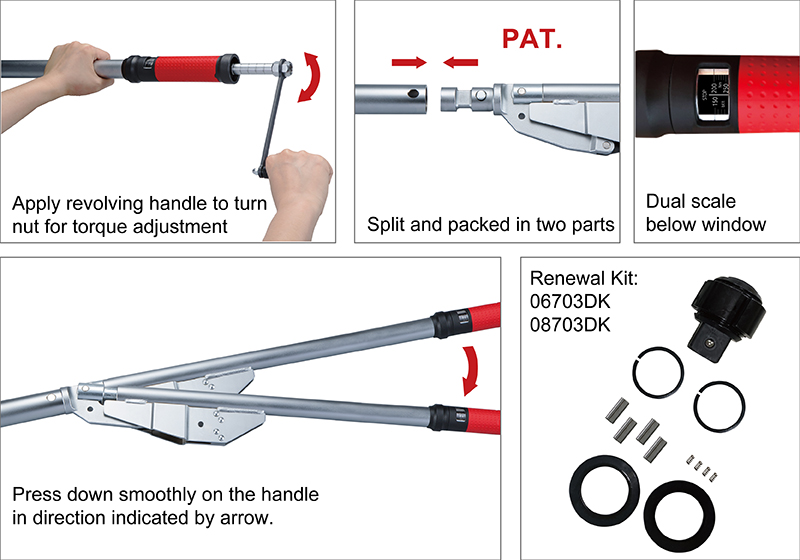

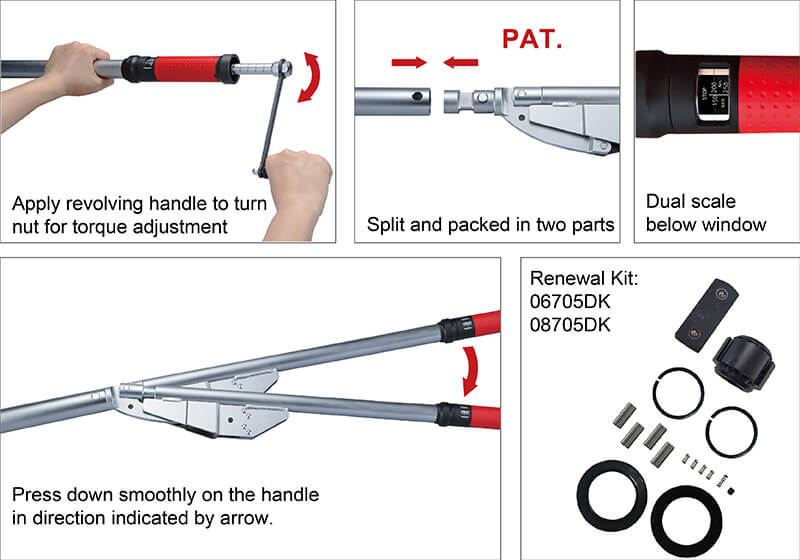

Operation and Function of Torque-Tech's breakback torque wrench: 1.Apply revolving handle to turn nut for torque adjustment 2.Split and packed in two parts 3.Dual scale below window 4.Press down smoothly on the handle in direction indicated by arrow
Taiwan leading breakback torque wrench manufacturer
Heavy-Duty Vehicle & Agricultural Machinery

Heavy-Duty Vehicle & Agricultural Machinery

TT NO.Square driveTeethNmFt-lbGraduationL(mm)gcase/CTN
68667-1F 3/4" 36T 120~600 100~450 10 1060 6600 1
68667-2F 200~800 150~600 10 1320 7900 1
68667-3F 300~1000 200~750 20 1550 8060 1

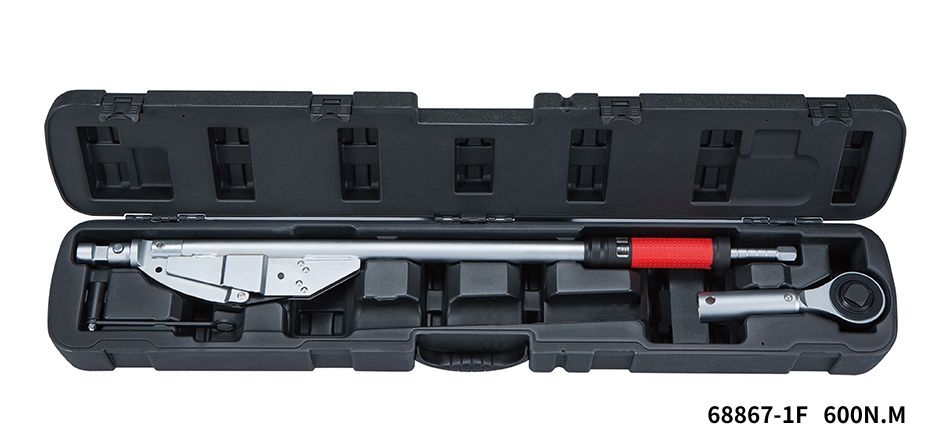

68867-1F 1” 36T 120~600 100~450 10 1060 6600 1

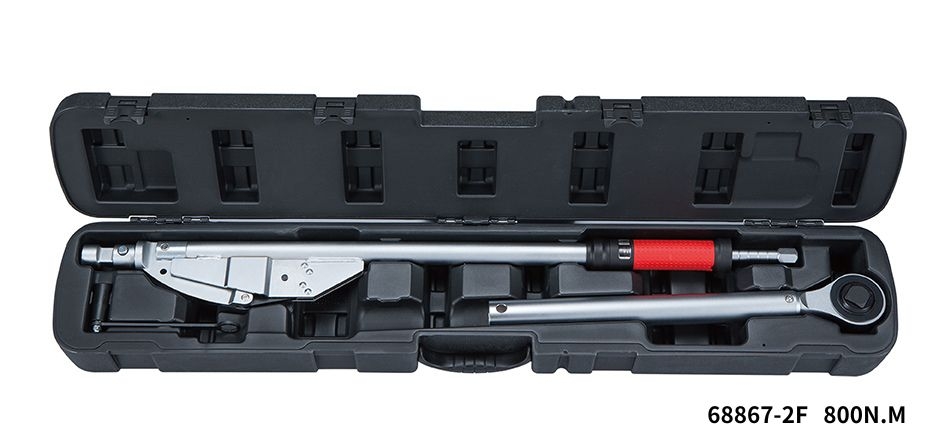

68867-2F 200~800 150~600 10 1320 7900 1
68867-3F 300~1000 200~750 20 1550 8060 1
68867-4F 600~1500 140~1100 50 1930 10850 1
