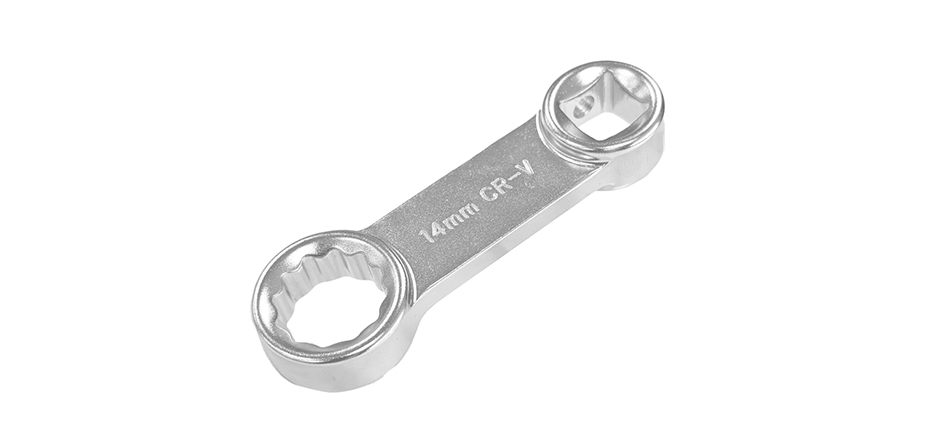

BOX END 7423

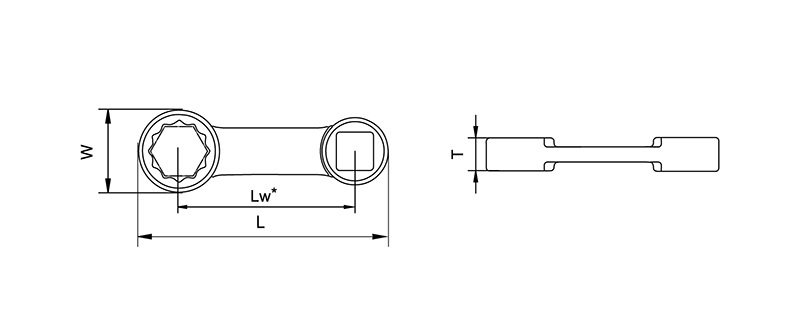

| TT NO. | SIZE | □ | Lw*(mm) | L(mm) | W | T |
|---|---|---|---|---|---|---|
| 7423-06W | 06 | 3/8" | 50.8 | 67.3 | 11 | 4.5 |
| 7423-07W | 07 | 67.3 | 11 | 4.5 | ||
| 7423-08W | 08 | 67.3 | 14.5 | 5.5 | ||
| 7423-09W | 09 | 67.3 | 14.5 | 5.5 | ||
| 7423-10W | 10 | 68.8 | 18 | 8 | ||
| 7423-11W | 11 | 68.8 | 18 | 8 | ||
| 7423-12W | 12 | 70 | 20 | 9 | ||
| 7423-13W | 13 | 70 | 20 | 9 | ||
| 7423-14W | 14 | 71.3 | 23.5 | 10 | ||
| 7423-15W | 15 | 71.3 | 23.5 | 10 | ||
| 7423-16W | 16 | 73 | 26.5 | 12 | ||
| 7423-17W | 17 | 73 | 26.5 | 12 | ||
| 7423-18W | 18 | 74.8 | 29 | 13 | ||
| 7423-19W | 19 | 74.8 | 29 | 13 | ||
| 7423-22W | 22 | 78.8 | 36 | 14.5 |
When using an extension or adapter (increasing the effective length of the torque wrench), the output torque value will change.
Please refers to the table as below,
T = Output of Torque value
L = Distance between drive and hand position
Lw* = Length of adapter or extension
B = Wrench scale reading
*Hold the handle at the center point.
*L (Distance between drive and hand position) will be changed depends on B (Wrench scale reading)
