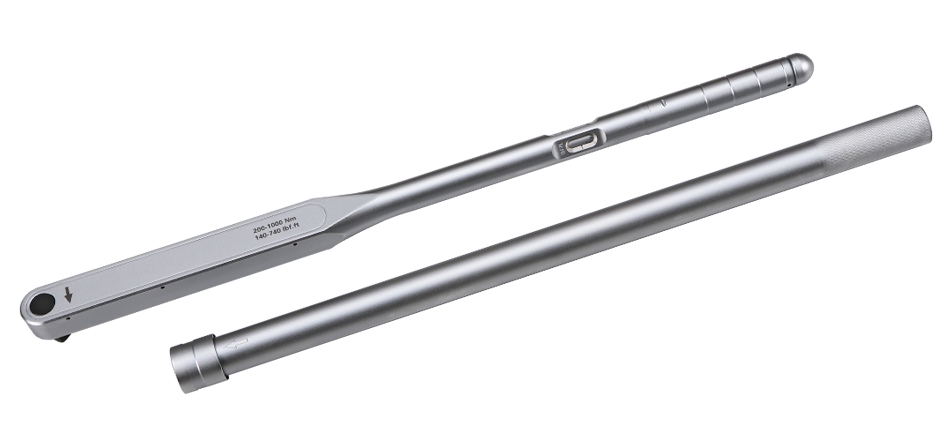

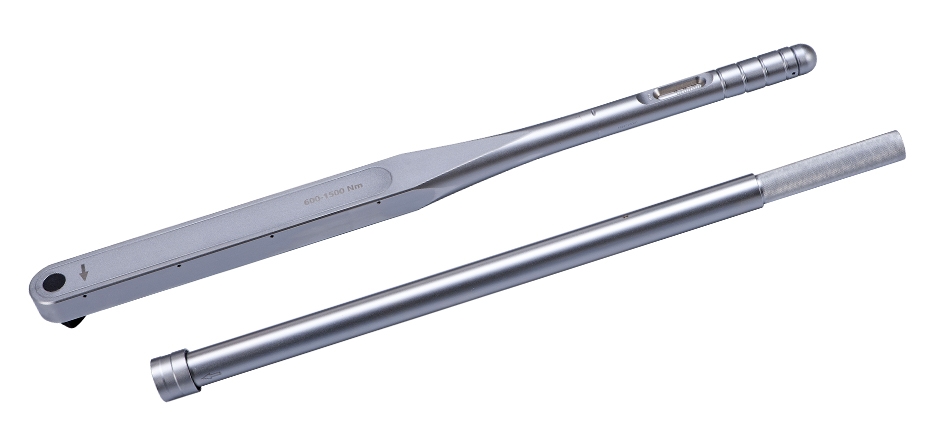

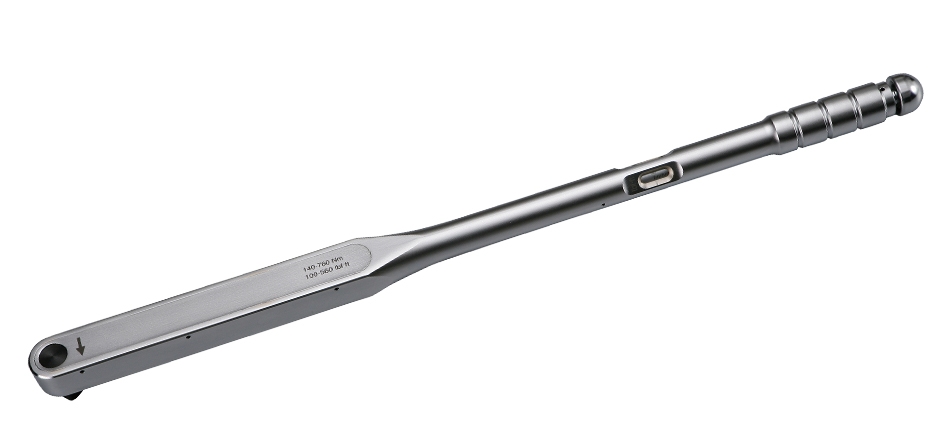

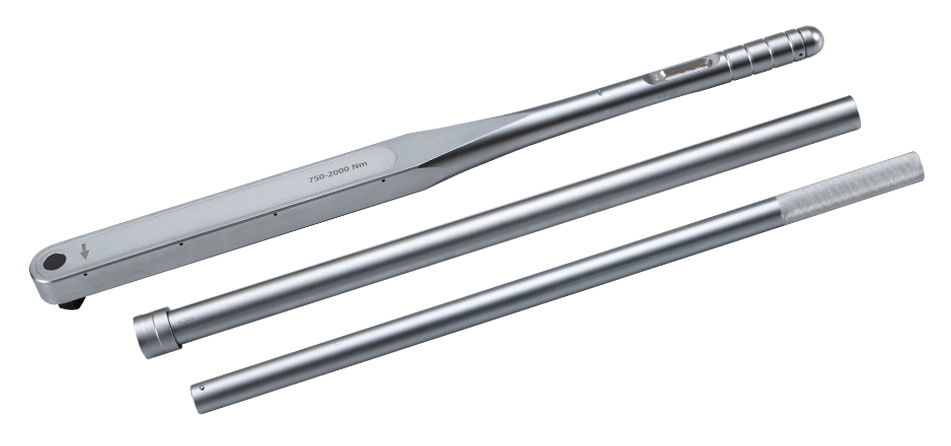

Aluminum Torque Wrench (Single-Drive)

Product Name : Aluminum Torque Wrench (Single-Drive)
Features
  • Industrial application with durability.
  • Lightweight yet robust; housing is made of aluminium alloy.
  • Multi-lever mechanism brings length independence and accurate torque.
  • Loud click sound and strong impulse when torque value reached.
  • Tolerance of torque ±3%.
  • Quality meets DIN ISO 6789 & ASME B107.300-2010.
Inquiry
Product Introduction
proimages/products/Aluminum_Torque_Wrench_/Aluminum_Torque_Wrench_/鋁製特點說明_工作區域_1.jpg
  1. Output Square Driver: Chromium - molybdenum alloy steel brings better strength, toughness, stability and life cycle.
  2. Multi-lever mechanism: Integrated 3-lever chain mechanism brings length independence, greater sensitivity, high accuracy and a long-life cycle. For the main body, we use the high intensity aluminum alloy. The weight of Aluminum is extremely lighter than steel , good for long -time operation and heavy industry. Chrome-plating finish strengthens the material hardness & anti-collision.
  3. Scales: Dual-scales window of torque measurement (N.m. & Ft-lb).
  4. Handle: Nice-to-hold handgrip enables safe work and less operator fatigue.

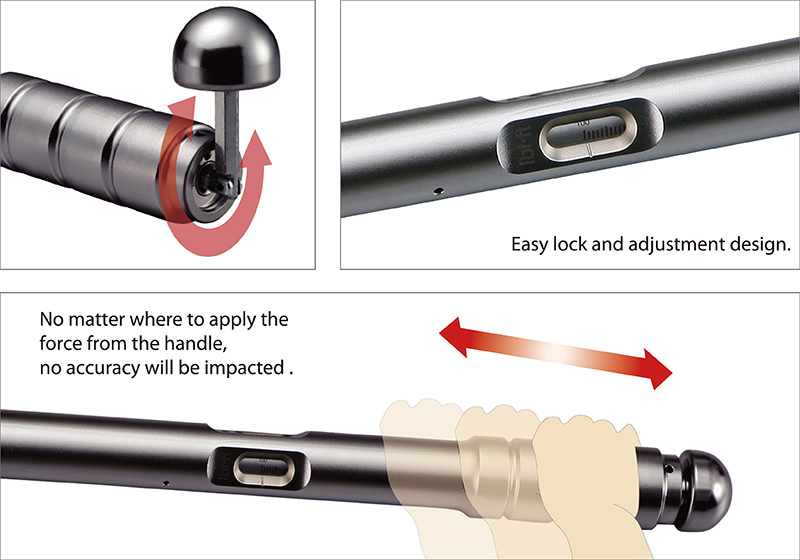

  5. Energy saving torque-adjusting design: Quick pull out and easy adjustment with unique crank. It is suitable for heavy, aerospace industry, wind power industry and automation industries.
proimages/products/Aluminum_Torque_Wrench_/Aluminum_Torque_Wrench_/鋁製操作應用圖_工作區域_1.jpg
proimages/products/Aluminum_Torque_Wrench_/Aluminum_Torque_Wrench_/鋁製扭扳情境圖.jpg

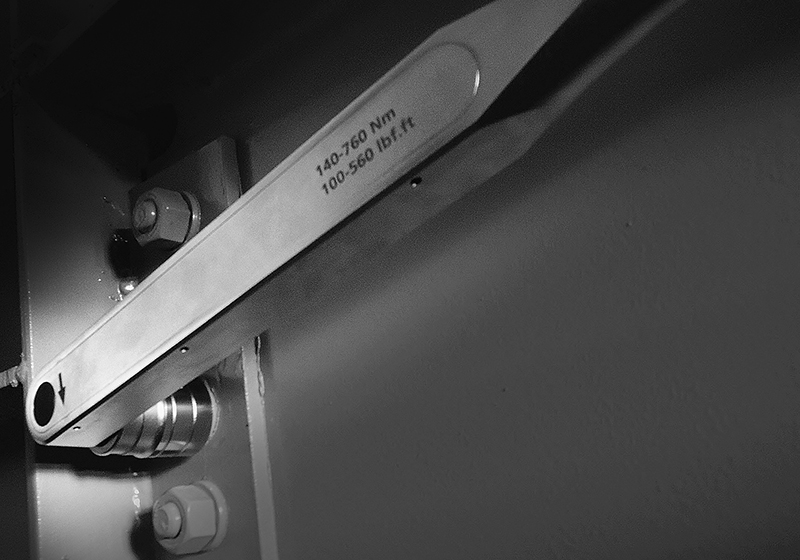

Aerospace & Marine Industry

Aerospace & Marine Industry

Wind Energy & Renewable Power

TT NO.TYPESquare driveNmlbf.ft (lbf.in)GraduationgL(mm)case/CTN
TW-317-2F NO PUSH 3/8" 8-40 70-350 5 940 356 12
TW-417-1F NO PUSH 1/2" 20-120 15-90 5 1240 475 12
TW-417-2F 40-200 30-150 5 1500 563 12
TW-417-3F 50-300 35-220 5 1650 625 12
TW-617-2F NO PUSH 3/4" 110-550 80-400 10 3000 827 2
TW-617-3F 140-760 100-560 10 3000 827 2
TW-617-4F 200-1000 140-740 10 3800 1413 2

TT NO.TYPESquare driveNmGraduationgL(mm)case/CTN
TW-817-1D NO PUSH 1" 600-1500 25 10900 1615 1
TW-817-2D 750-2000 50 11700 2370 1
TW-917-2D NO PUSH 1-1/2" 1500-3000 50 16400 2820 1

TT NO.TYPESquare driveNmlbf.ft (lbf.in)GraduationgL(mm)case/CTN
TW-337-2F PUSH 3/8" 8-40 70-350 5 940 356 12
TW-437-1F PUSH 1/2" 20-120 15-90 5 1240 475 12
TW-437-2F 40-200 30-150 5 1500 563 12
TW-437-3F 50-300 35-220 5 1560 625 12
TW-637-2F PUSH 3/4" 110-550 80-400 10 3000 827 2
TW-637-3F 140-760 100-560 10 3000 827 2
TW-637-4F 200-1000 140-740 10 3800 1413 2

TT NO.TYPESquare driveNmGraduationgL(mm)case/CTN
TW-837-1D PUSH 1" 600-1500 25 10900 1615 1
TW-837-2D 750-2000 50 11700 2370 1
