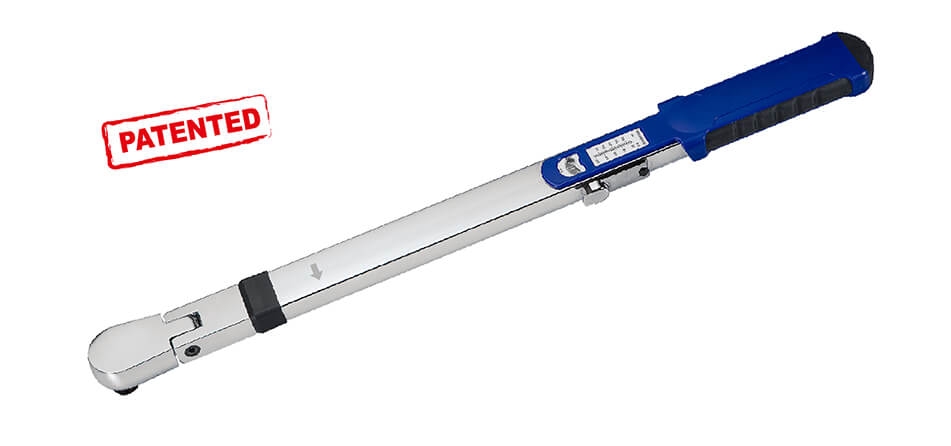

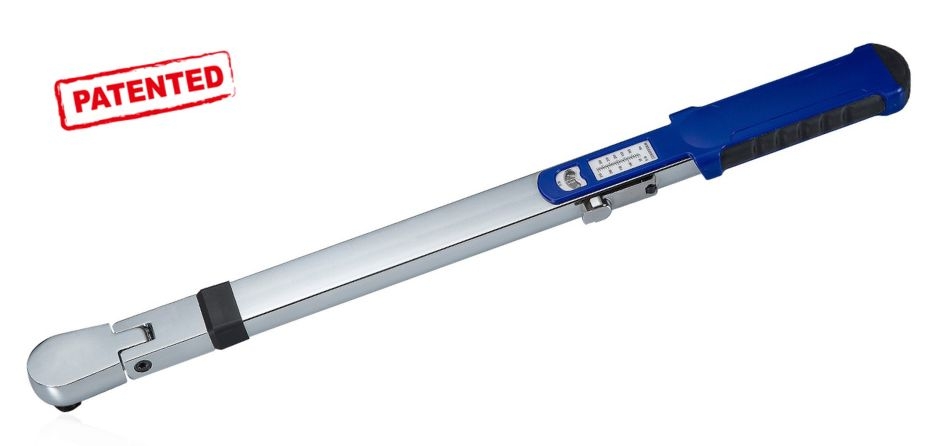

Flexible Split-Beam Torque Wrench (90T Sealed Head)

Product Name : Flexible Split-Beam Torque Wrench (90T Sealed Head)
Features
  • Torque of tolerance: unflexed +-4%; flexed +-4%~+-10%.
  • Non coil-spring mechanism and no need to return to zero after use, which brings longer tool life.
  • Knob-type torque adjustment is faster and more energy-efficient.
  • Toothed hinge cover contains the lock function, which can prevent setting from being changed accidentally.
  • Torque setting can be easily read through the window scale.
  • Conversion table to N.m displayed on the handle.
  • TPR cushion handle provides comfort, easy control and oil-resistance.
  • Torque measurement in a clockwise direction only with 15 degree flex. head; but 3/4" with detachable fixed ratchet applied to both clockwise and licounterclockwise directions.
  • Loud click sound strong impulse when required torque is reached.
  • Quality meets DIN ISO 6789 & ASME B107.300-2010.
Video
Inquiry
Product Introduction
封閉頭彈片特點說明

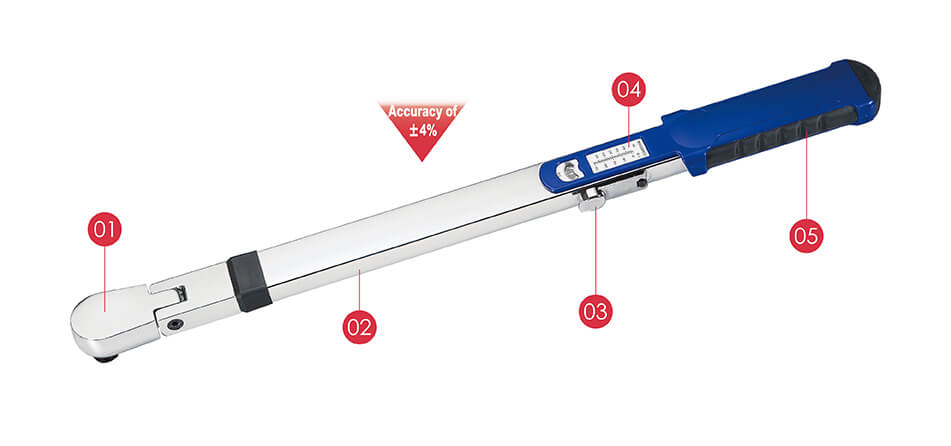

  1. Ratchet head: A highly robust ratchet mechanism and flexible head.
    Repair kit for inner spare parts of ratchet head is available.

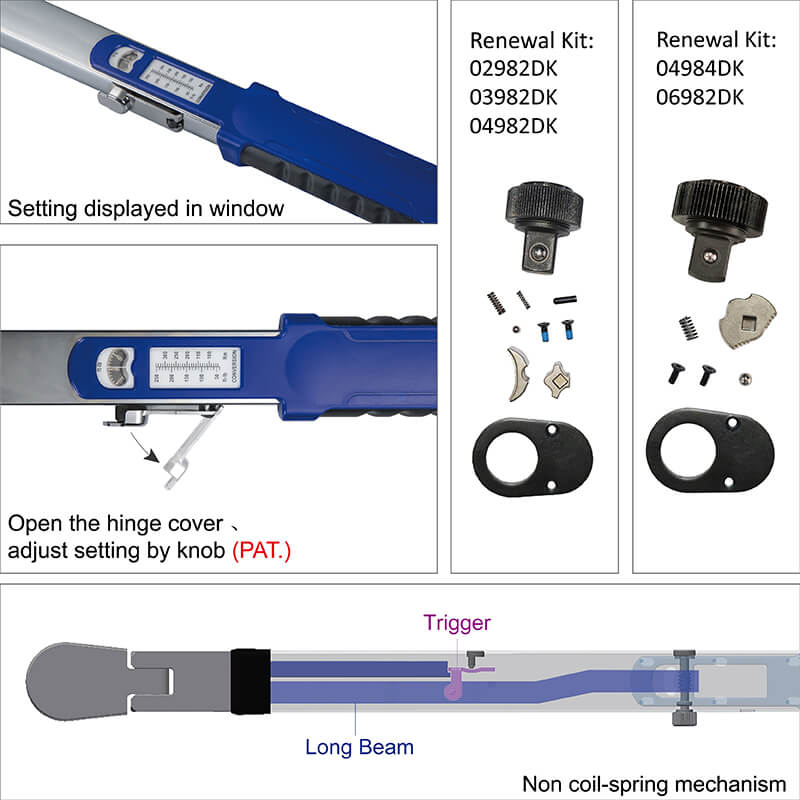

  2. Reliable mechanism: Non coil-spring mechanism and no need to return to zero after use, which brings longer tool life and less maintenance request.
  3. Hinge cover: Toothed guard contains the lock function, which can prevent setting from being changed accidentally.
    Knob-type torque adjustment brings faster and energy-efficient.
  4. The window scale: The conversion table to N.m displayed on the handle. The main reading window scale for single unit while operation.
  5. Grip handle: TPR cushion handle provides comfort, easy control and oil-resistance.
封閉頭彈片操作應用圖
封閉頭彈片操作應用圖
Automotive Manufacturing & Maintenance

Automotive Manufacturing & Maintenance

TT NO.Head TypeSquare driveTeethSwing arcNmGraduationgL(mm)case/CTN
68298-1F Flex. Ratchet 1/4" 90T 15° 4-20 0.5 400 259 24
68298-2F 5-25 0.5 400 258 24
68398-1F Flex. Ratchet 3/8" 90T 15° 14-68 2 950 475 12
68398-2F 25-130 5 950 475 12
68498-1F Flex. Ratchet 1/2" 90T 15° 40-200 5 1705 590 10
68498-2F 70-350 5 1705 590 10
68498-3F 80-400 5 1705 590 10

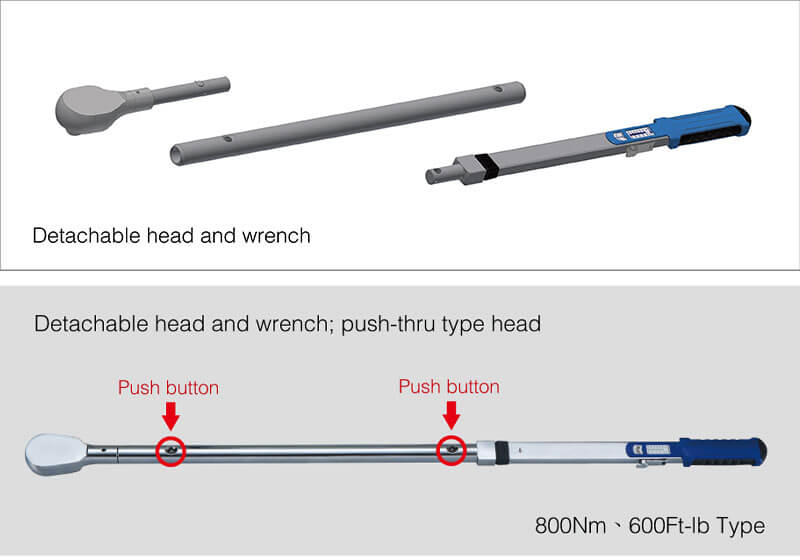

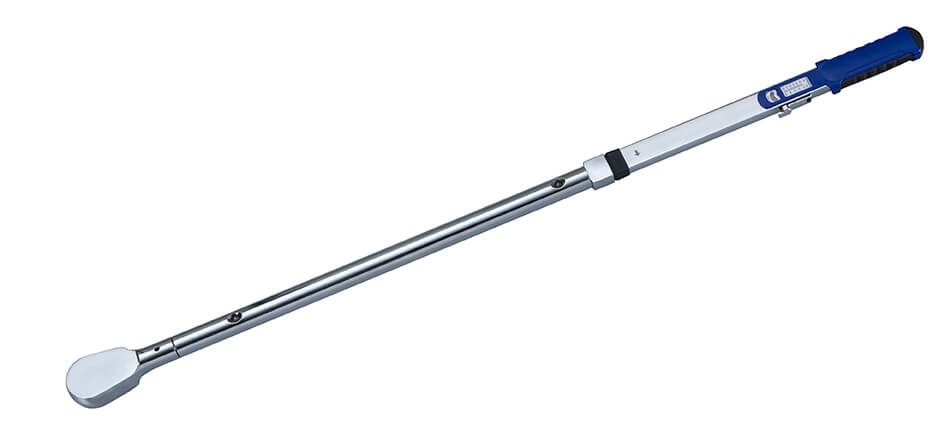

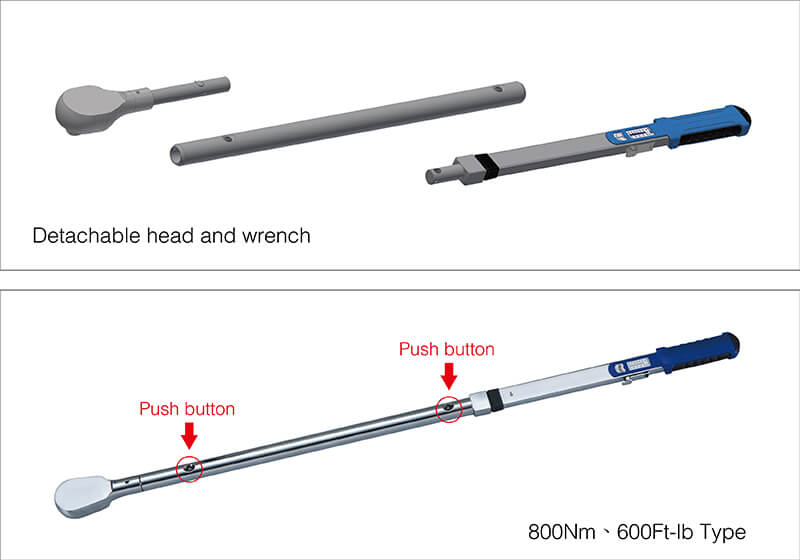

68698-2F Detach-Ratchet 3/4" 72T - 270-800 10 5450 1265 2
TT NO.Head TypeSquare driveTeethSwing arcft-lb(in-lb)GraduationgL(mm)case/CTN
68298-1C Flex. Ratchet 1/4" 90T 15° 40-200 4.5 400 258 24
68298-2C 45-225 4.5 400 258 24
68398-1C Flex. Ratchet 3/8" 90T 15° 10-50 1 950 475 12
68398-2C 20-100 2 950 475 12
68398-3C 120-600 10 950 475 12
68498-1C Flex. Ratchet 1/2" 90T 15° 30-150 5 1705 590 10
68498-2C 40-250 5 1705 590 10
68498-3C 60-300 5 1705 590 10
68498-4C Flex. Ratchet 1/2" 72T 15° 85-350 5 2275 790 6
68698-2C Detach-Ratchet 3/4" 72T - 200-600 10 5450 1265 2
